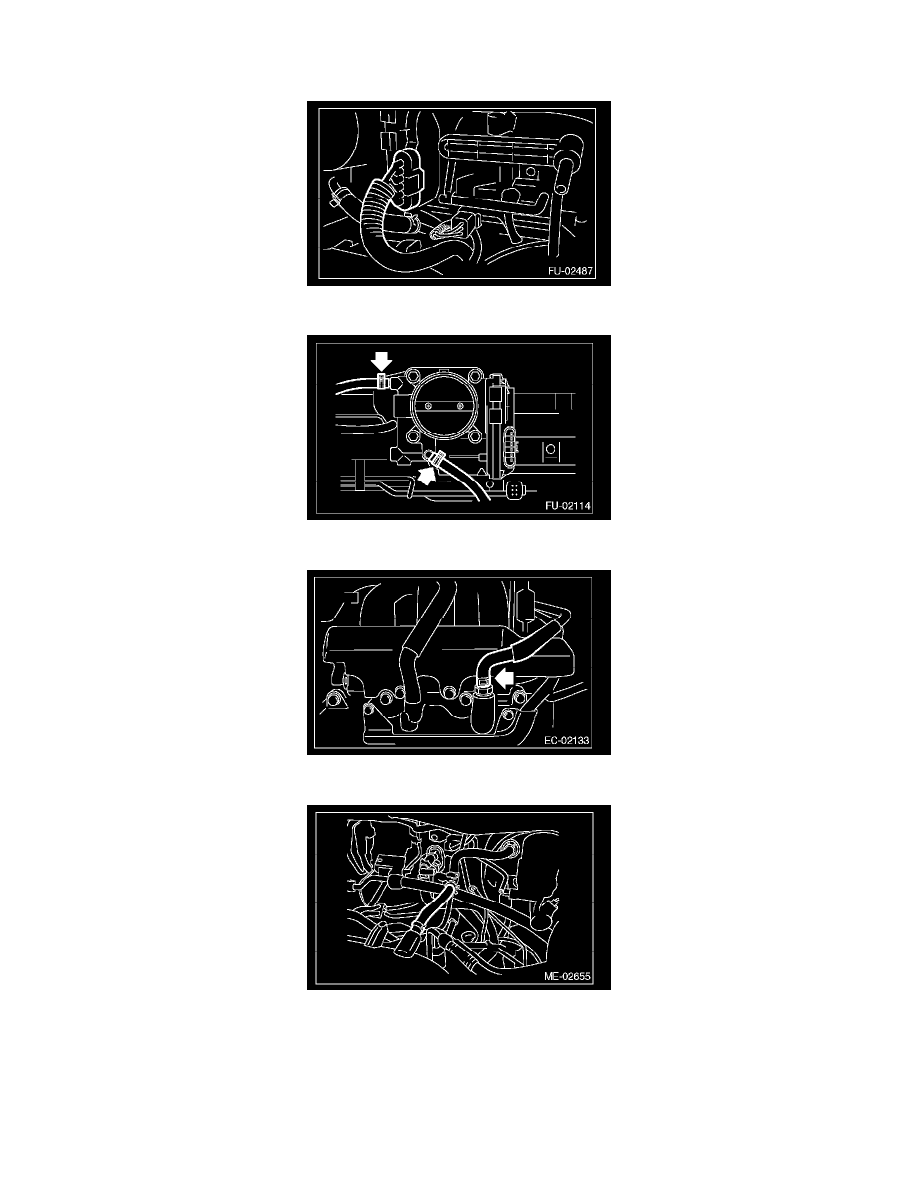

4. Open the fuel filler flap lid, and remove the fuel filler cap.
5. Remove the air cleaner case and air intake chamber.
6. Remove the generator.

7. Disconnect the connector from throttle body.

8. Disconnect the engine coolant hoses from throttle body.

9. Disconnect the PCV hose.

10. Disconnect the brake booster hose.
