B9 Tribeca F6-3.0L DOHC (2006)

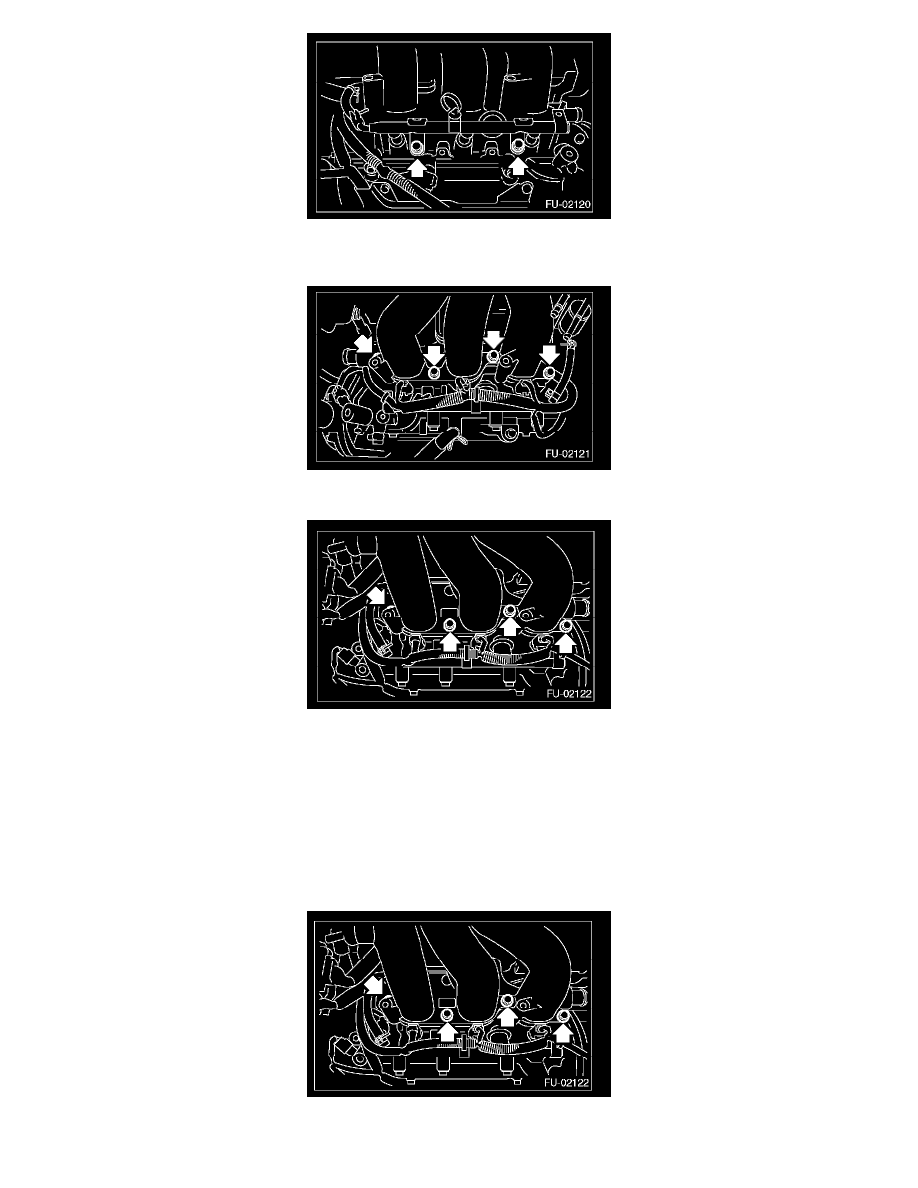

17. Remove the bolts which hold the fuel injector pipe RH to the cylinder head.
18. Remove the bolts which hold the intake manifold to the cylinder head.
-
LH side
-
RH side
19. Remove the intake manifold.
INSTALLATION
1. Install the intake manifold onto cylinder heads.
NOTE: Use new O-rings.
Tightening torque: 25 N.m (2.5 kgf.m, 18 ft.lb)
-
RH side
