Outback F6-3.0L (2003)
Grille: Service and Repair
FRONT GRILLE
REMOVAL
1. Open hood.

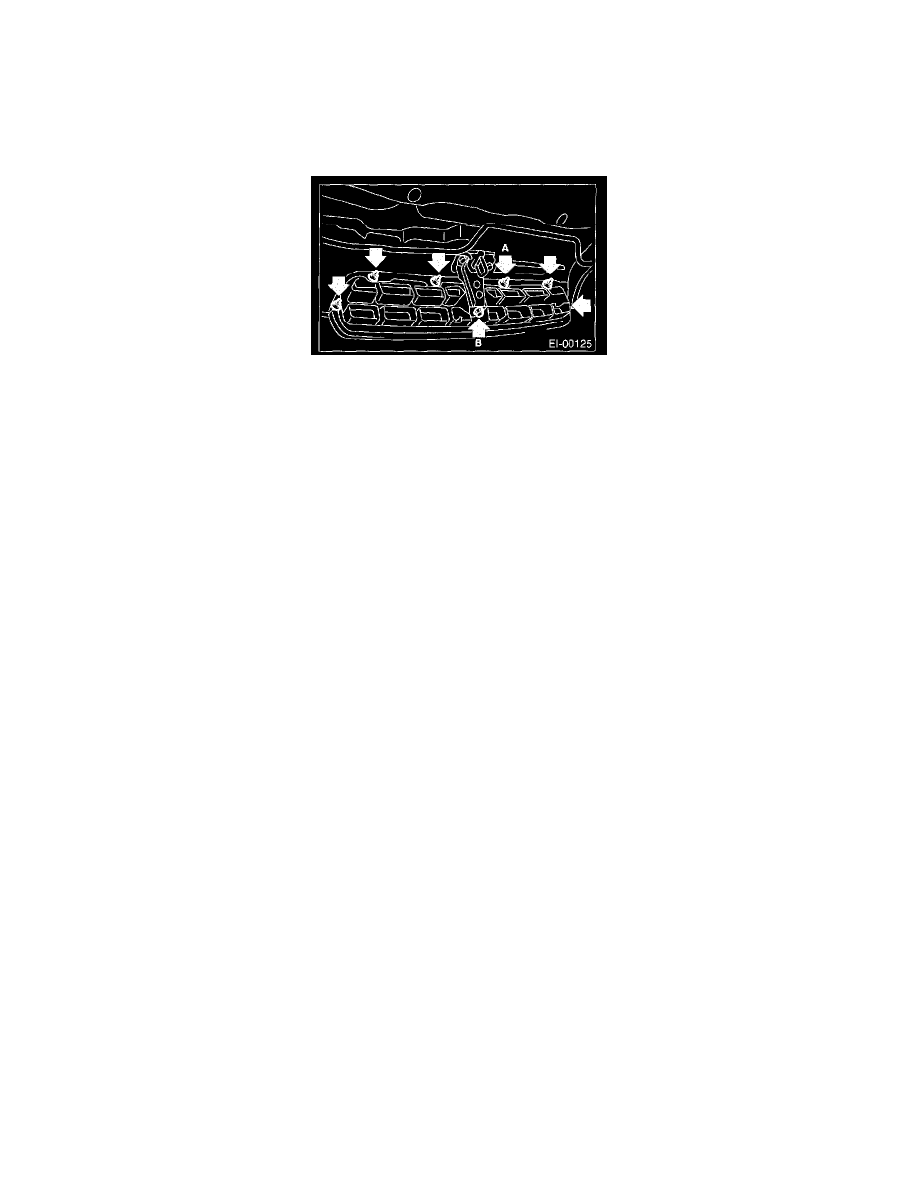

2. Loosen bolts and nuts to remove front grill.
INSTALLATION
Install in the reverse order of removal.
Tightening torque:
A: 4.4±1.5 N.m (0.4±0.1 kgf-m, 3.2±1.0 ft-lb)
B: 7.0±2.0 N.m (0.7±0.2 kgf-m, 5.1±1.4 ft-lb)
