Splash Guard: Service and Repair

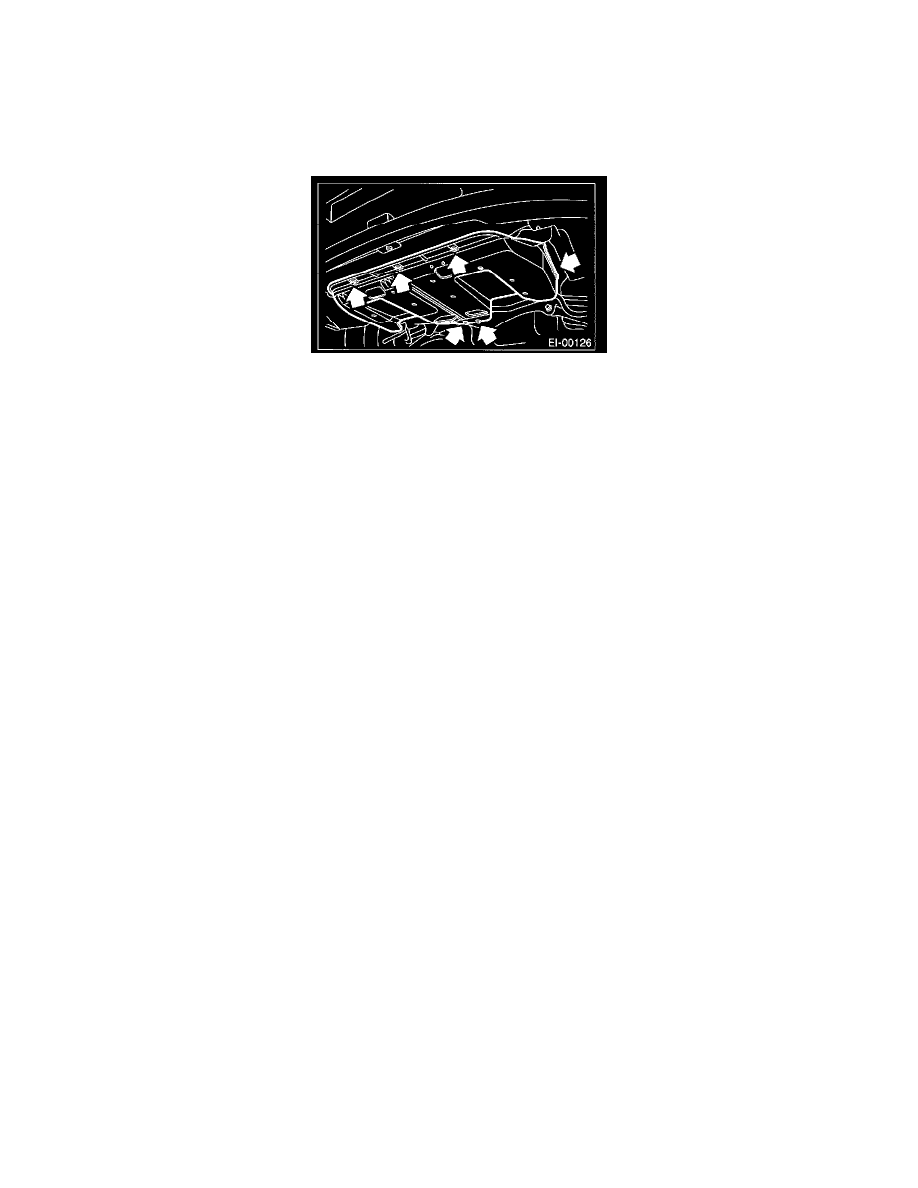

FRONT UNDER COVER

REMOVAL

1. Lift-up the vehicle.
2. Loosen bolts and clips to remove under cover.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 18.4 N.m (1.88 kgf-m, 13.6 ft-lb)
