Brake Pedal Assy: Diagrams

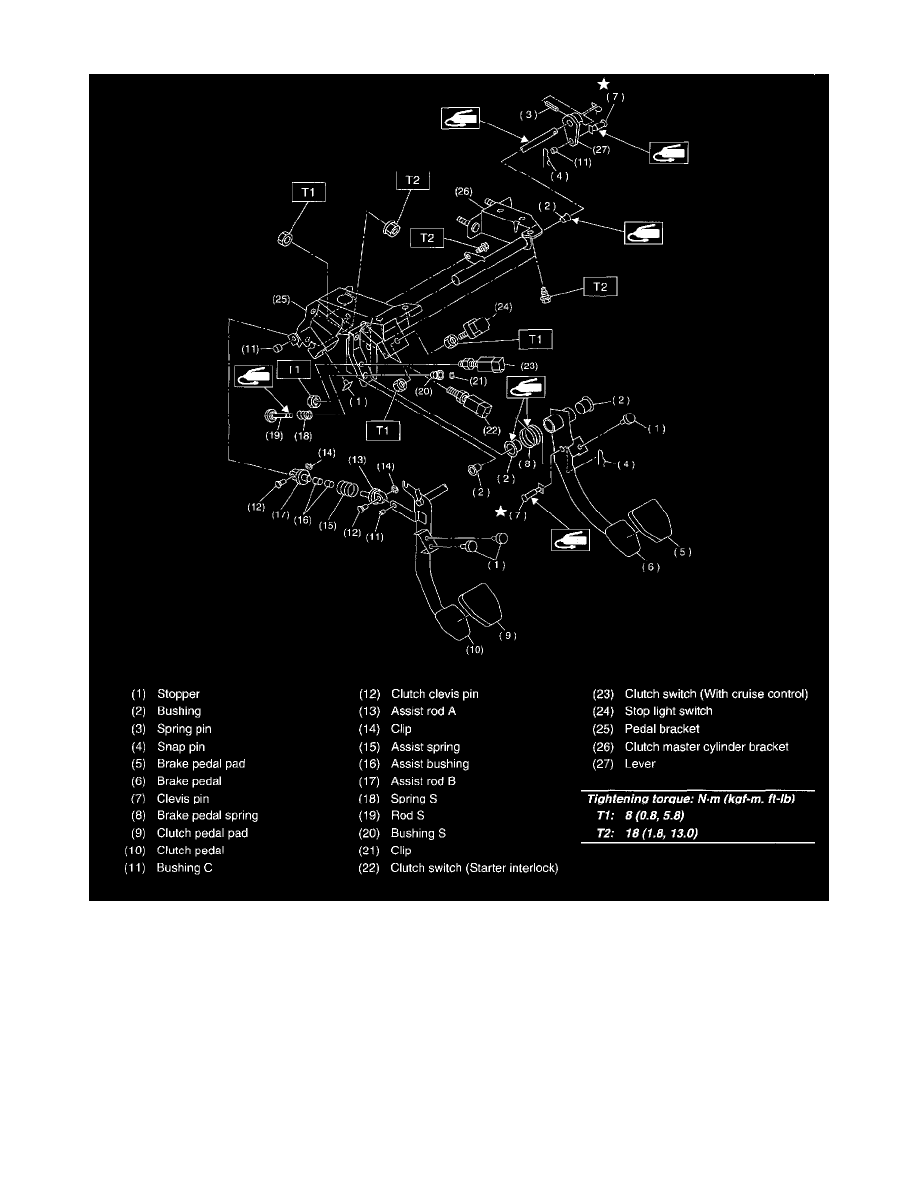

BRAKE PEDAL FOR MT MODEL

Brakes and Traction Control
Brake Pedal Assy
Component Information
Diagrams
