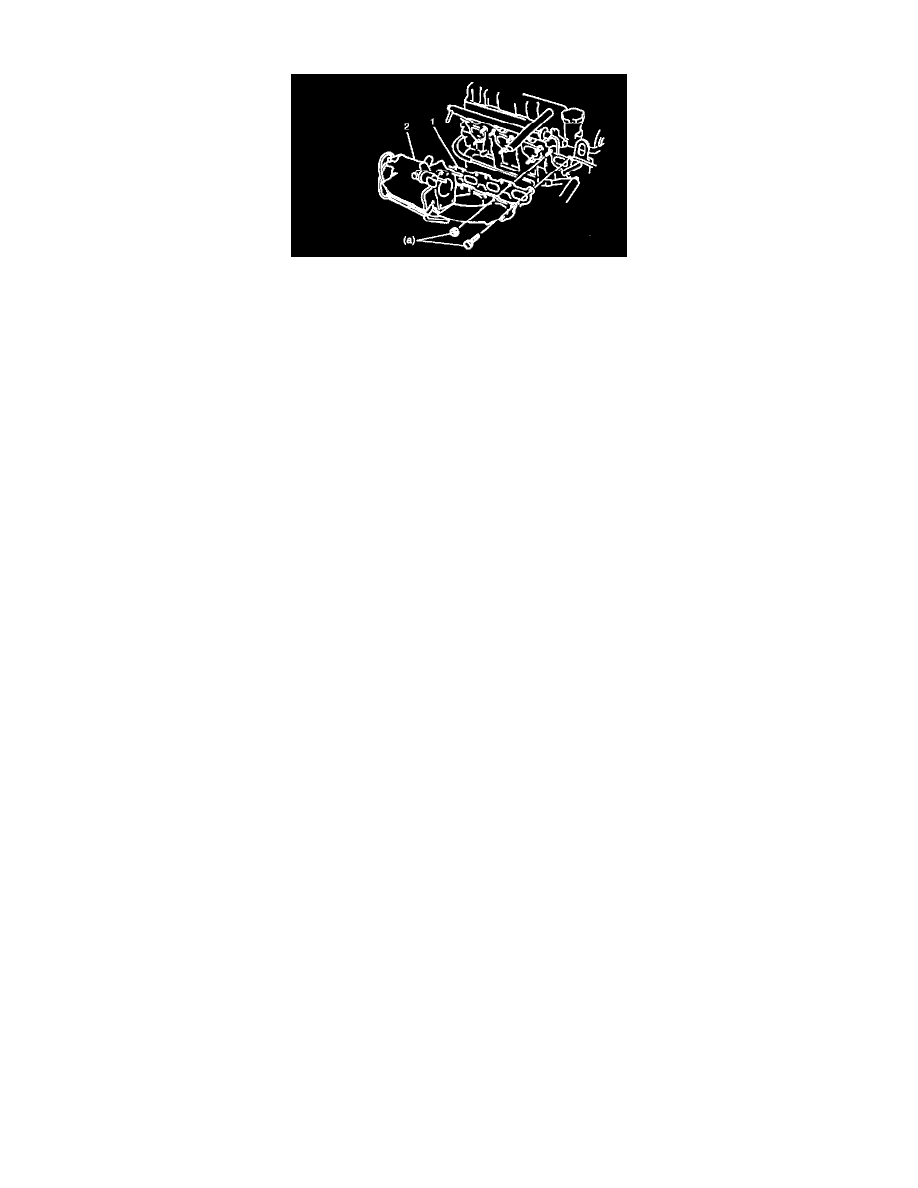

Intake Manifold: Specifications
Intake manifold bolts and nuts ............................................................................................................................................................... 23 Nm (17.0 ft. lbs.)
Intake manifold rear stiffener bolts ...................................................................................................................................................... 50 Nm (36.5 ft. lbs.)
Intake manifold front stiffener bolts ...................................................................................................................................................... 25 Nm (18.0 ft. lbs.)
Throttle body bolts and nuts ..................................................................................................................................................................... 23 Nm (17 ft. lbs.)
