SX4 2WD L4-2.0L (2007)
Windshield: Service and Repair
WINDSHIELD REMOVAL AND INSTALLATION

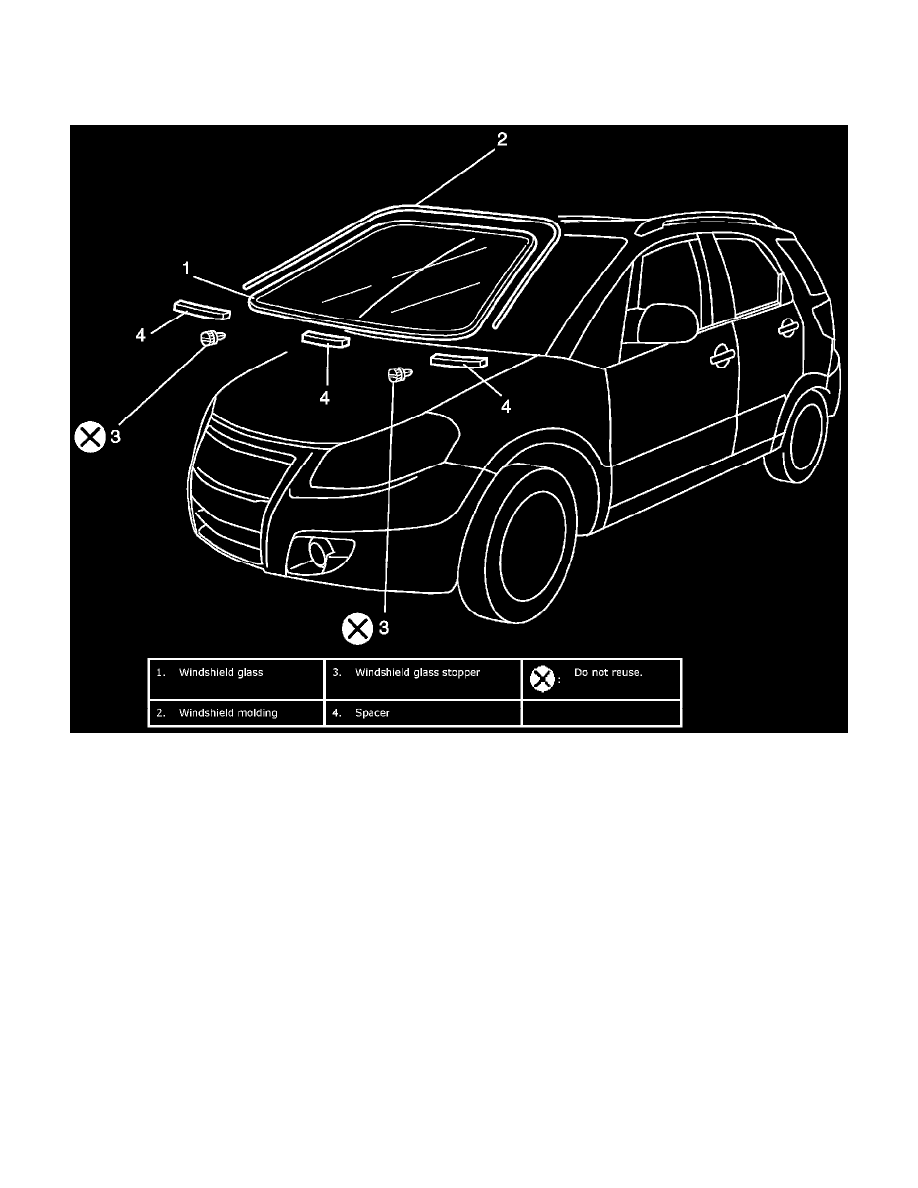

Reference: Windshield Components
Windshield Components
Preparation
The windshield is installed by using a special type of adhesive (that is, one component urethane adhesive used with primer). For the windshield
replacement, it is important to use an adhesive which provides sufficient adhesion strength and follow the proper procedure.
CAUTION:
^
Described is the glass replacement by using 3 types of primers and 1 type of adhesive made by YOKOHAMA (one component urethane
adhesive to be used with primer in combination). When using primer and adhesive made by other manufacturers, be sure to refer to
handling instructions supplied with them. Negligence in following such procedure or misuse of the adhesive in any way hinders its
inherent adhesive property. Therefore, before the work, make sure to read carefully the instruction and description given by the maker of
the adhesive to be used and be sure to follow the procedure and observe each precaution throughout the work.
^
Should coated surface be scratched or otherwise damaged, be sure to repair damaged part, or corrosion may start from there.
Use the specific adhesive which has the following property.
Glass adhesive shearing strength
40 kg/cm(2) (569 lb/in(2)) or more
Adhesive materials and tools required for removal and installation.
^
One component urethane adhesive and primers used in combination (For one sheet of windshield).
^
Adhesive (470 g (15.7 oz.))
