Relay Box: Locations
- Make
- Suzuki
- Model
- Verona
- Engine
- L6-2.5L
- Year
- 2005
- Section
- Fuses and Circuit Breakers › Relay Box › Locations
MaintenanceLocations · page 1 of 3

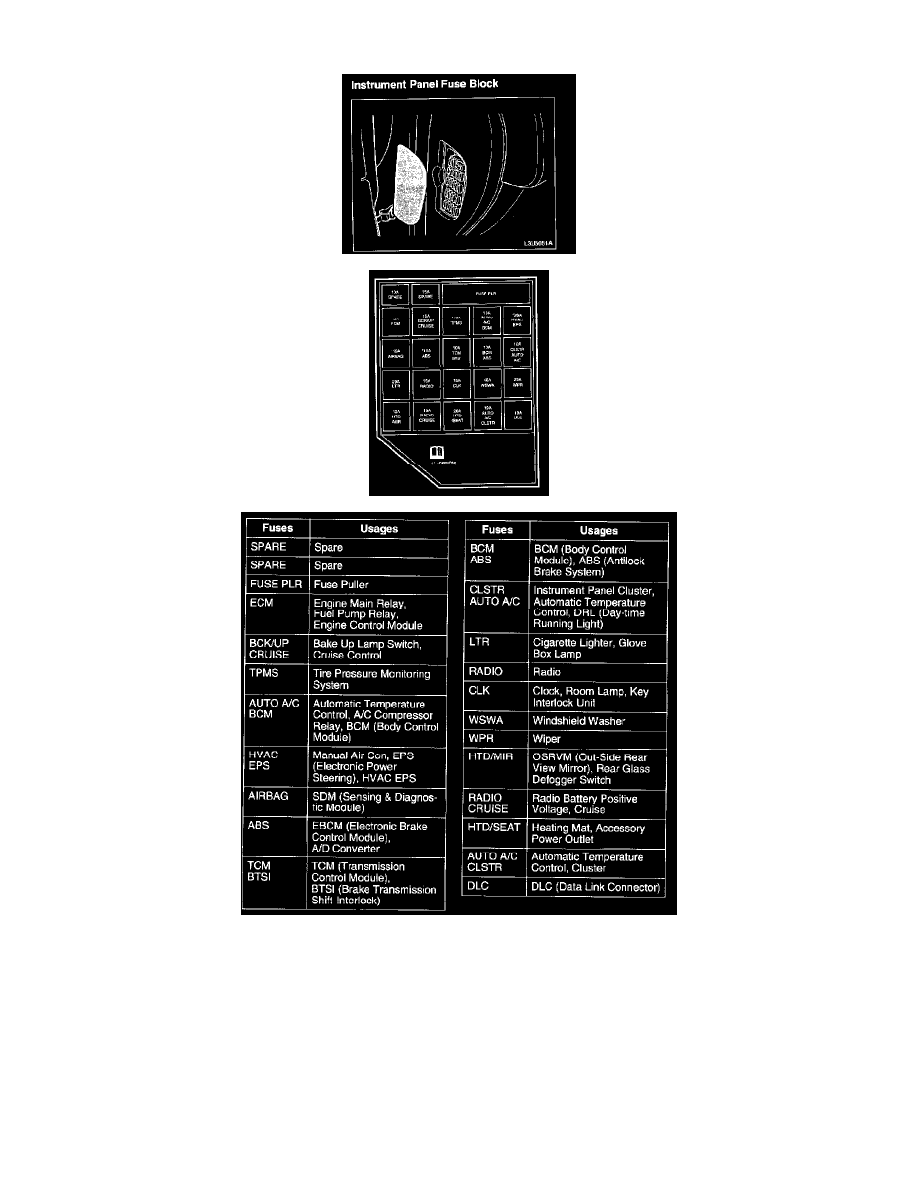

Relay Box: Locations – diagram from the Maintenance chapter of the Suzuki Verona L6-2.5L (2005) factory manual.
Relay Box: Locations
