4 Runner 2WD V6-4.0L (1GR-FE) (2006)
/Page-1211001.png)
Navigation System: Component Tests and General Diagnostics
AVC-LAN Circuit
AVC-LAN CIRCUIT
CIRCUIT DESCRIPTION
Each unit of the navigation system connected to the AVC-LAN (communication bus) transfers the signal of each switch by communication.
When a short to +B or short to ground occurs in this AVC-LAN, the navigation system will not function normally as communication is discontinued.

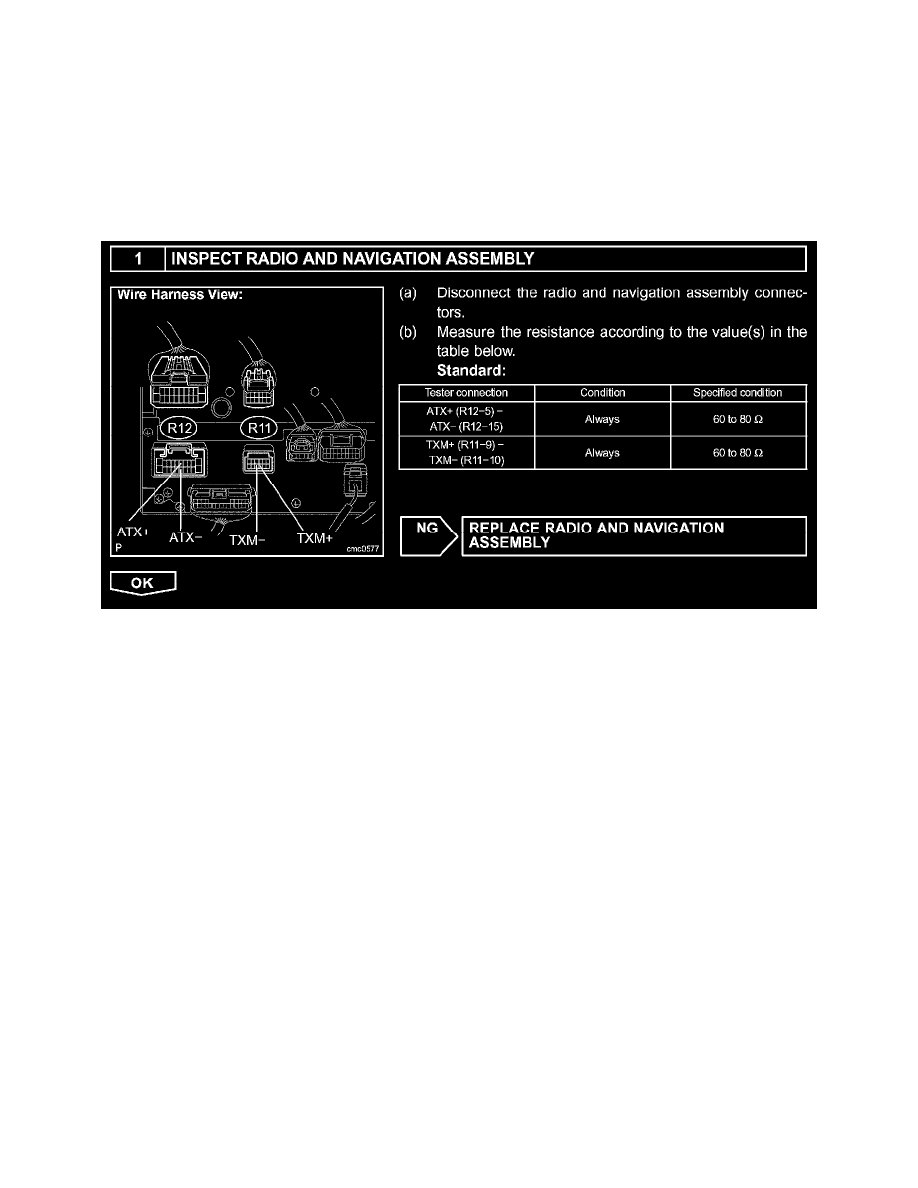

Step 1
