Alignment (Alignment Specifications): Specifications

Alignment: Specifications
Alignment Specifications

CAMBER, CASTER AND STEERING AXIS INCLINATION

TIRE SIZE (225/75R15)

Camber ................................................................................................................................................................................. -0°13' ± 45' (-0.22° ± 0.75°)
Left-Right Error ........................................................................................................................................................................................ 30' (0.5°) or less
Caster  ....................................................................................................................................................................................  3°22' ± 45' (3.37° ± 0.75°)
Left-Right Error  ......................................................................................................................................................................................  30' (0.5°) or less
Steering Axis Inclination  .................................................................................................................................................  10°58' ± 45' (10°98' ± 0.75°)
Left-Right Error  ......................................................................................................................................................................................  30' (0.5°) or less

TIRE SIZE (265/70R16)

Camber ................................................................................................................................................................................  -0°10' ± 45' (-0.17° ± 0.75°)
Left-Right Error  ......................................................................................................................................................................................  30' (0.5°) or less
Caster .....................................................................................................................................................................................  2°38' ± 45' (2.64° ± 0.75°)
Left-Right Error .......................................................................................................................................................................................  30' (0.5°) or less
Steering Axis Inclination ..................................................................................................................................................  10°35' ± 45' (10°58' ± 0.75°)
Left-Right Error .......................................................................................................................................................................................  30' (0.5°) or less

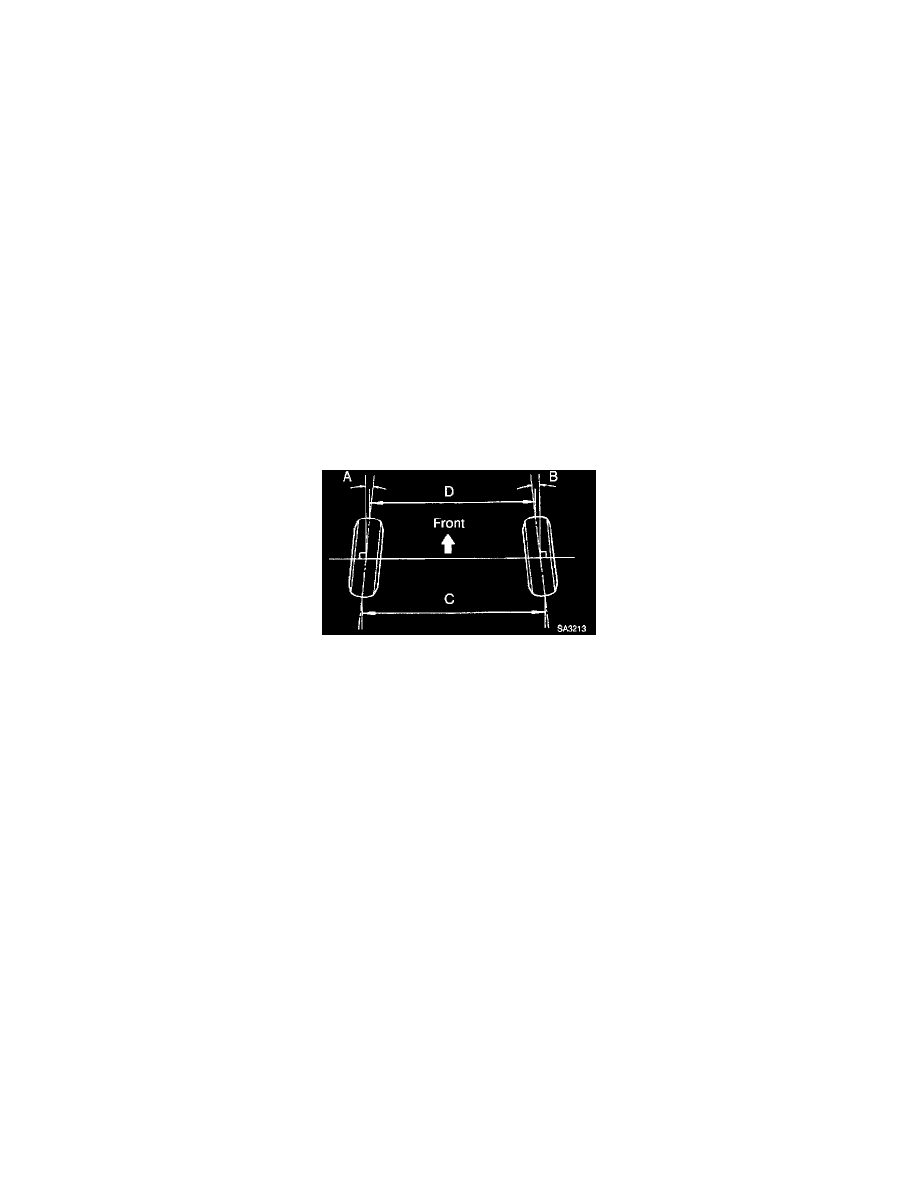

TOE-IN

Measuring Point Reference

TIRE SIZE (225/75R15)
A+B ...........................................................................................................................................................................................  0°10' ± 12' (0.16° ± 0.2)°
C-D ........................................................................................................................................................................................  1.6 ± 2 mm (0.06 ± 0.08 in)

TIRE SIZE (265/70R16)
A+B ...........................................................................................................................................................................................  0°12' ± 12' (0.20° ± 0.2°)
C-D ....................................................................................................................................................................................  2.0 ± 2 mm (0.07 ± 0.08 inch)

WHEEL ANGLE

TIRE SIZE (225/75R15)
Inside Wheel ..................................................................................................................................................................................  35°23'(33°23'-36°23')
Outside Wheel(Reference) ......................................................................................................................................................................................  31°22'

TIRE SIZE (265/70R16)
Inside Wheel ..................................................................................................................................................................................  35°45'(33°45'-36°45')
Outside Wheel(Reference) ......................................................................................................................................................................................  31°54'
