Relay Box: Locations
- Make
- Toyota
- Model
- Avalon
- Engine
- V6-3.0L (1MZ-FE)
- Year
- 1996
- Section
- Relay Box › Locations
Power and Ground DistributionLocations · page 1 of 6
/Page-1429001.png)
Relay Box: Locations

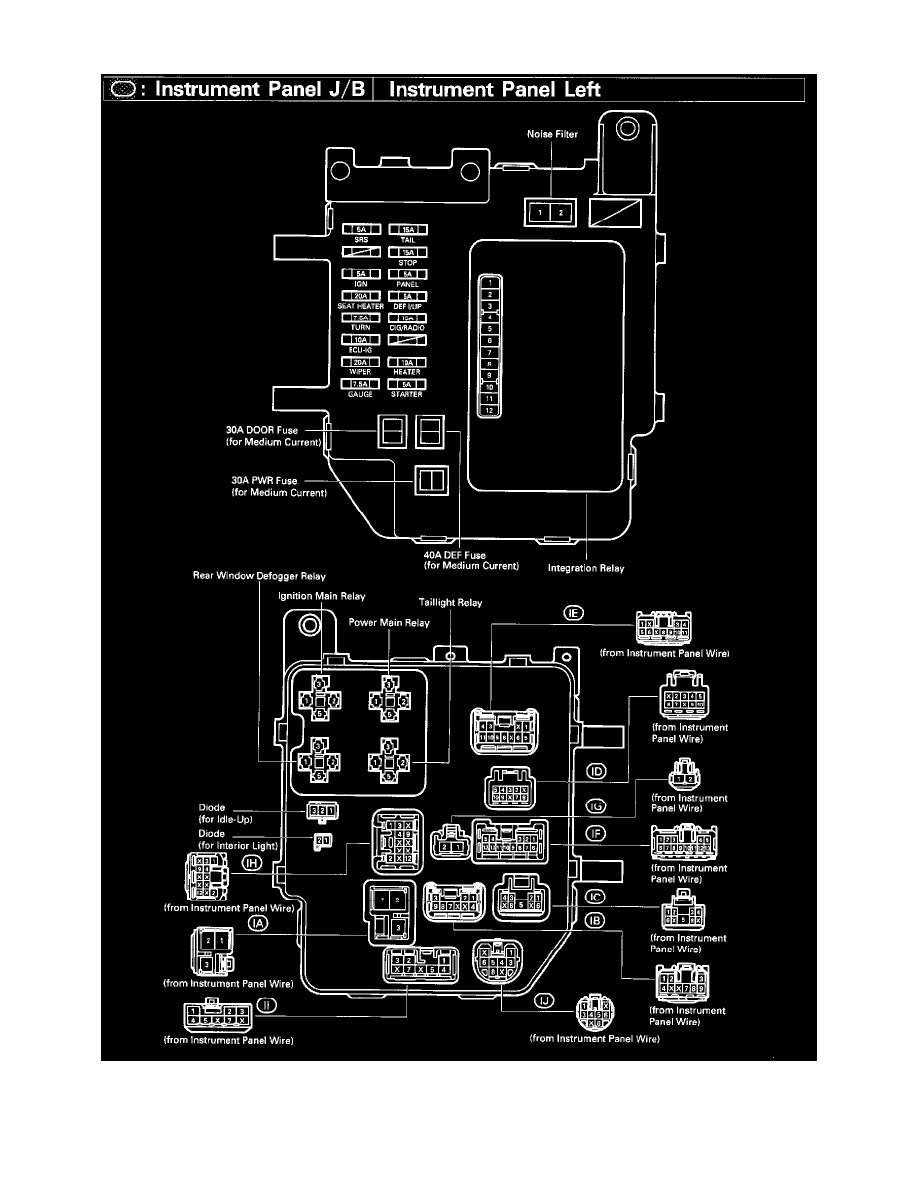

Locations-Instrument Panel J/B, Instrument Panel Left (Fig 20)
