Condenser HVAC: Diagrams
- Make
- Toyota
- Model
- Avalon
- Engine
- V6-3.5L (2GR-FE)
- Year
- 2006
- Section
- Condenser HVAC › Diagrams
Heating and Air ConditioningDiagrams · page 1 of 6
/Page-1251001.png)

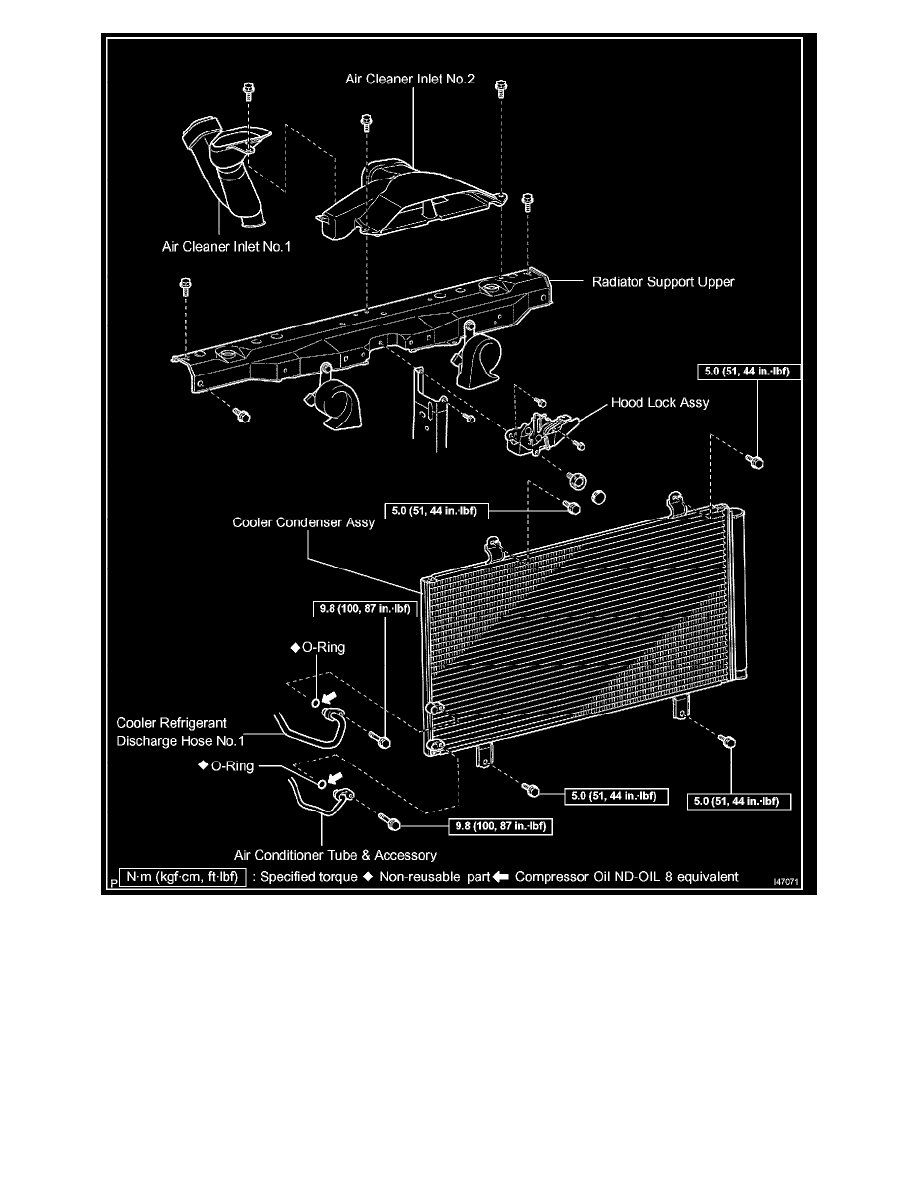

Cooler Condenser Assy
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
