Avalon V6-3.5L (2GR-FE) (2006)

  • Maintenance
  • Fuses and Circuit Breakers
  • Fuse
  • Component Information
  • Locations

Page 1
background image

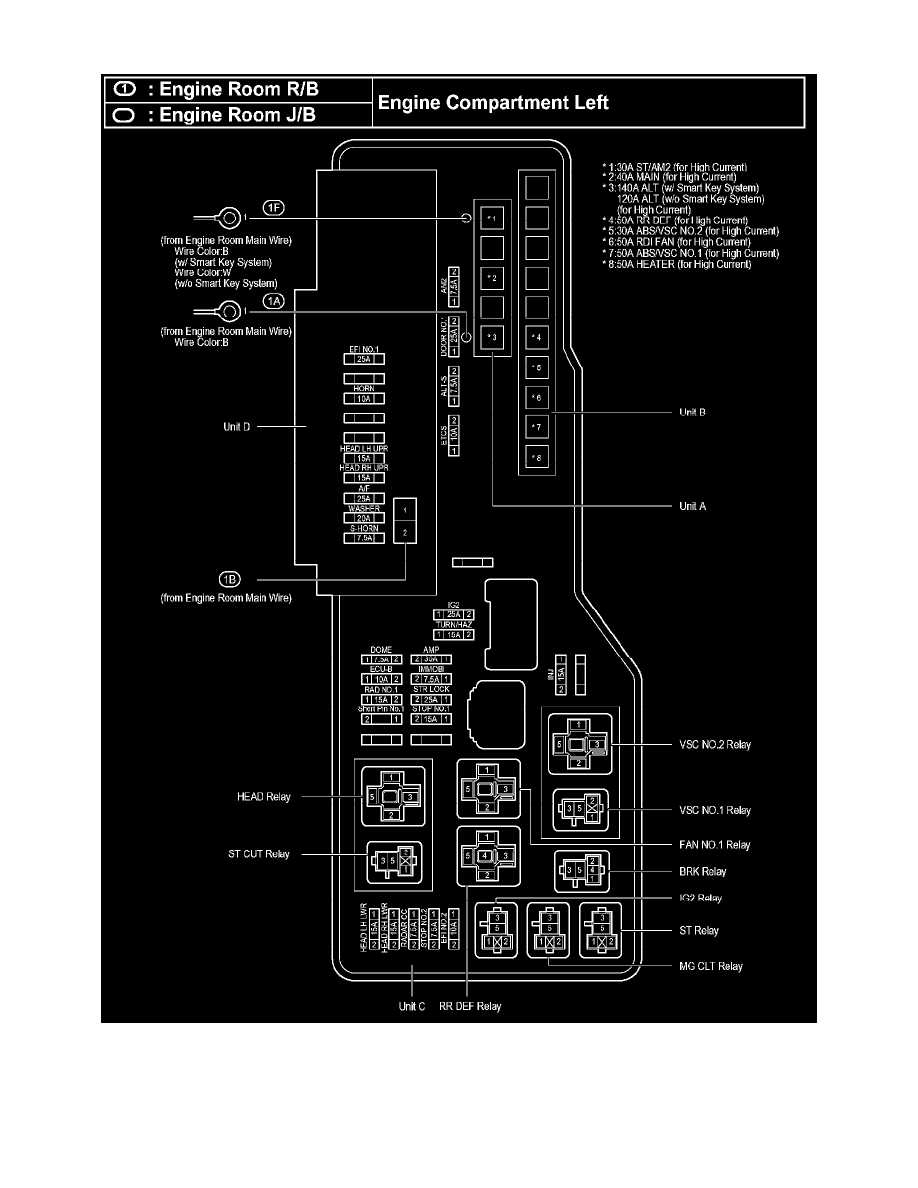

Fuse: Locations

Engine Room R/B Left
