Alignment (Front): Specifications (page 5 of 5)

Make

Toyota

Model

Avalon XLS

Engine

V6-3.0L (1MZ-FE)

Year

1998

Section

Alignment › Specifications

MaintenanceFront · page 5 of 5

Measuring Point Reference

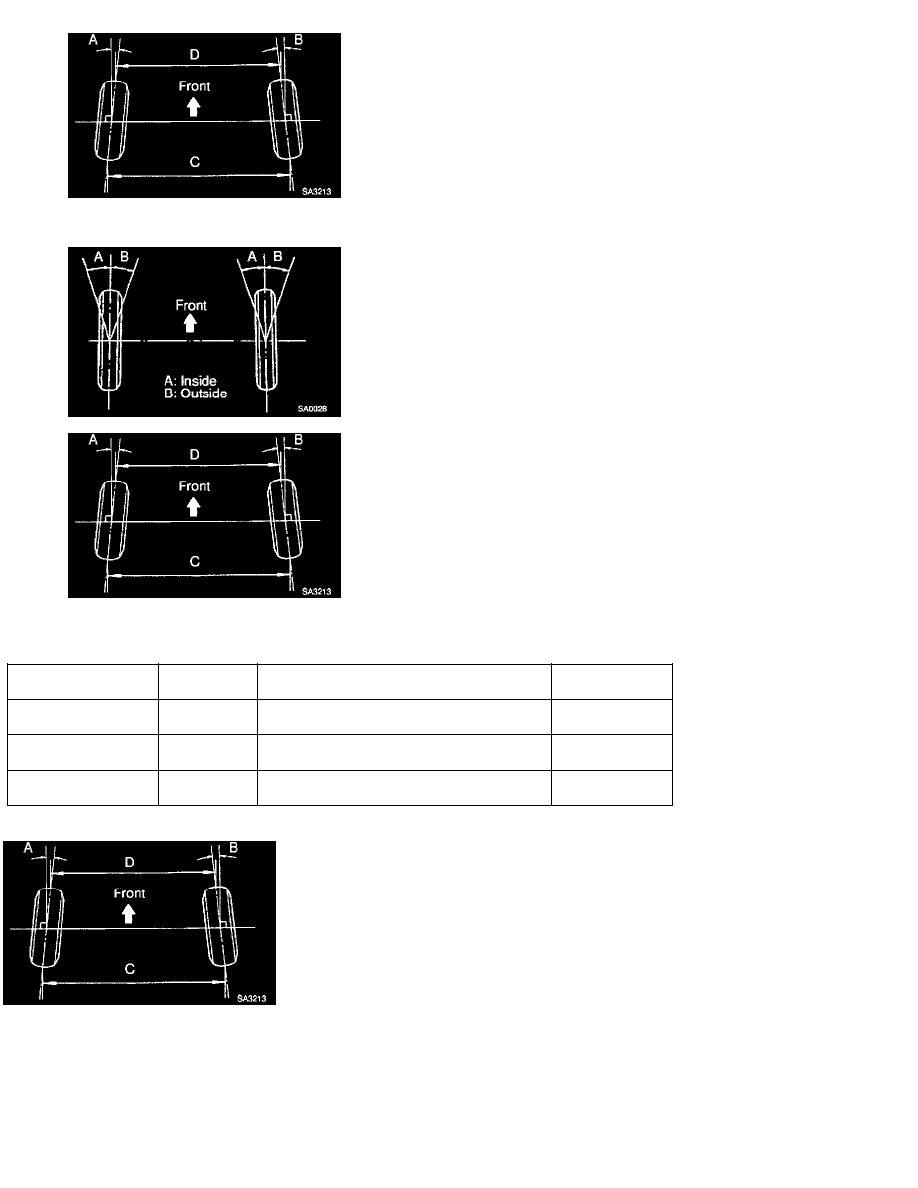

Measuring Point Reference



Rear Wheel Alignment Camber

0.77 +/- 0.75 deg











Left - Right Error

0.75 deg or less













Total Toe - In

0.16 +/- 0.08 in













No. 2 lower suspension arm Length Difference

0.04 in. or less













Measuring Point Reference
