Camry L4-2.4L (2AZ-FE) (2005)

Page 1
background image

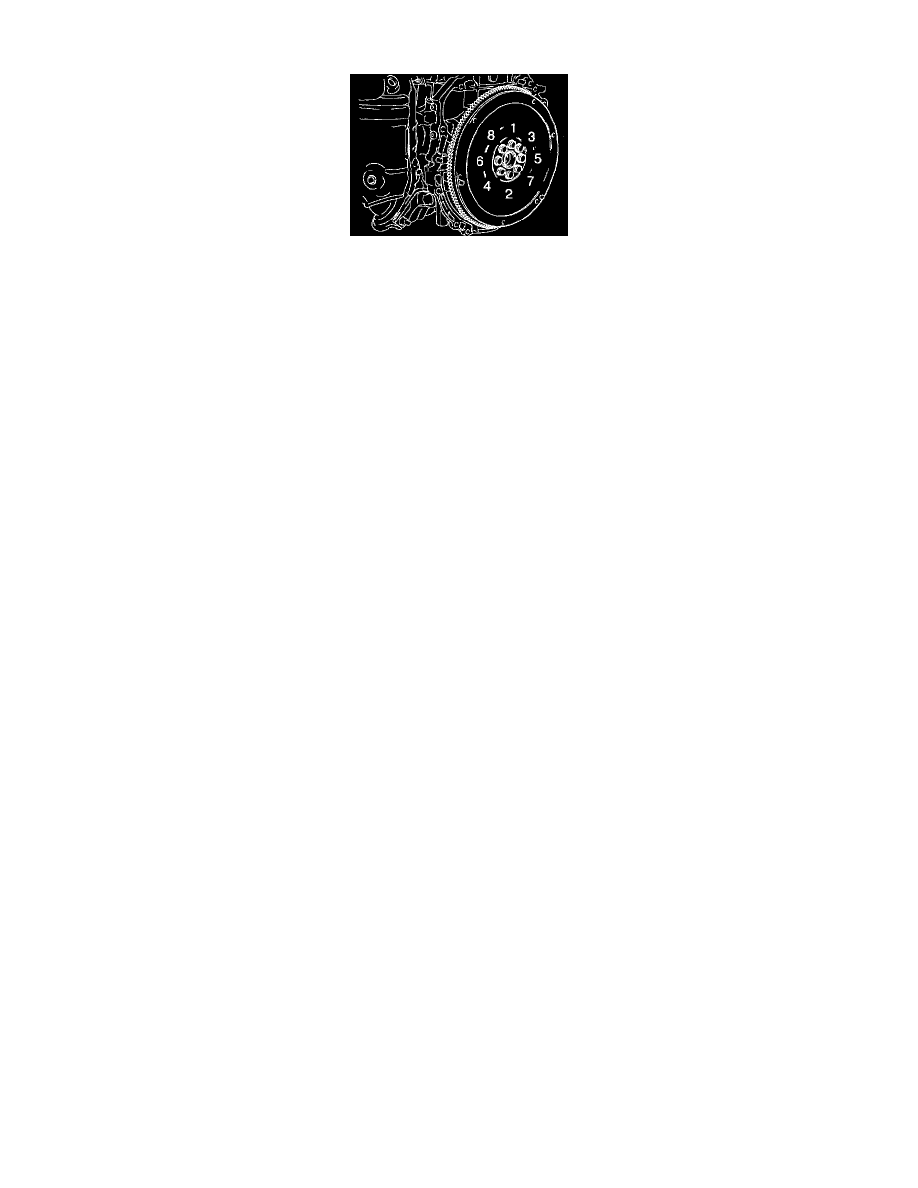

Flywheel: Specifications

Flywheel sub-assembly ....................................................................................................................................................  130 Nm (1,330 kgf-cm, 96 ft. lbs.)
Clutch cover assembly x Flywheel ....................................................................................................................................  19.1 Nm (195 kgf-cm, 14 ft. lbs.)
Flywheel runout (Maximum) .................................................................................................................................................................  0.1 mm (0.004 inch)
