Camry L4-2.4L (2AZ-FXE) Hybrid (2007)

Page 1
background image

Flex Plate: Specifications

FLYWHEEL

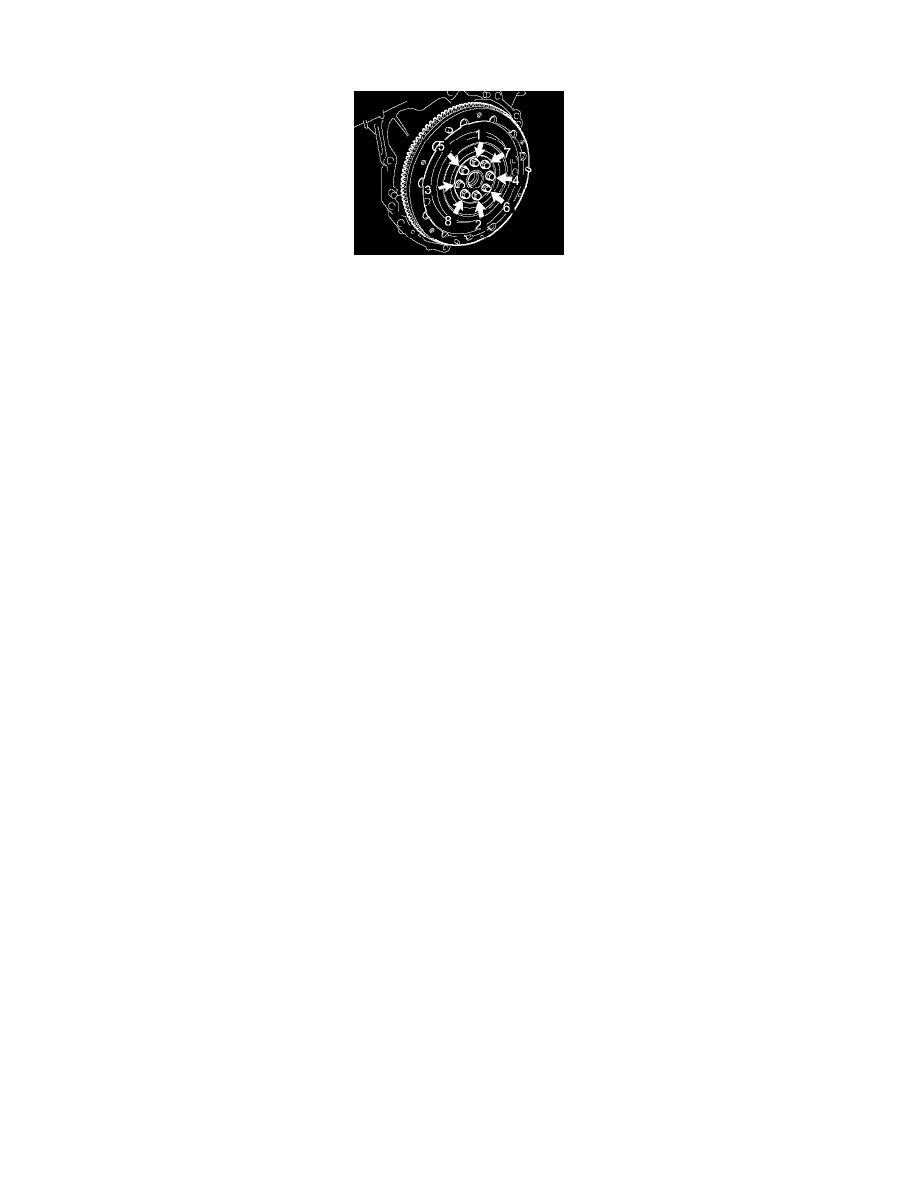

Install the flywheel with the 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.
Torque  ........................................................................................................................................................................  130 Nm (1,330 kgf-cm, 96 ft. lbs.)
