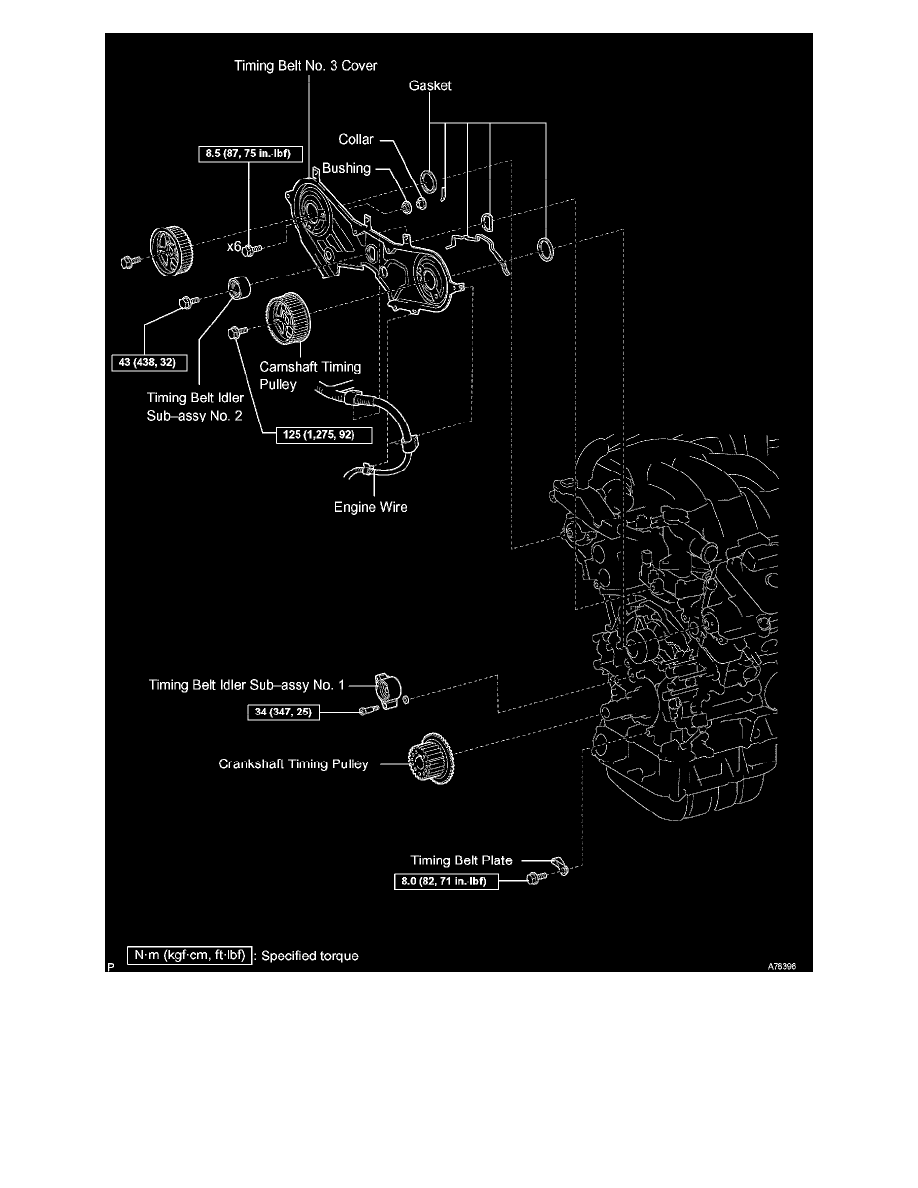

Part 3
TIMING BELT
REPLACEMENT
1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER APRON SEAL RH
3. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
4. REMOVE VANE PUMP V BELT
5. REMOVE ENGINE MOVING CONTROL ROD
