Toyota Camry V6-3.3L (3MZ-FE) (2005)03 · Maintenance
03 · Maintenance

Timing Belt: Specifications (page 7 of 9)

Make
Toyota
Model
Camry
Engine
V6-3.3L (3MZ-FE)
Year
2005
Section
Timing Belt
MaintenanceSpecifications · page 7 of 9
background image

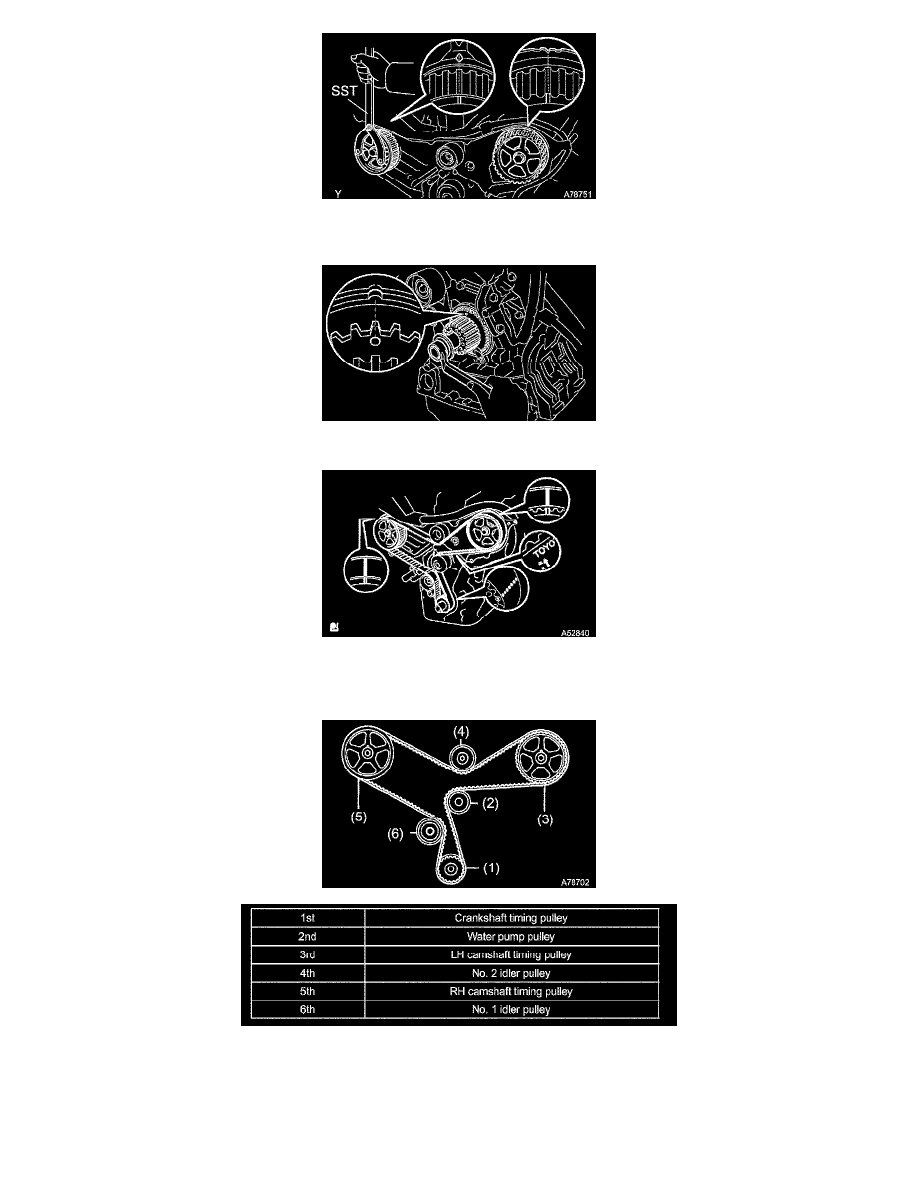

f.

Using SST, turn the timing pulleys, and align the timing marks of the timing pulleys with the No. 3 timing belt cover.
SST 09960-10010 (09962-01000, 09963-01000)

g. Turn the crankshaft, and align the timing mark of the crankshaft timing pulley with the oil pump body.

h. Face the front mark on the timing belt forward.
i.

Align the installation mark on the timing belt with the timing mark of the crankshaft timing pulley.

j.

Align the installation marks on the timing belt with the timing marks of the camshaft timing pulleys.

k. Install the timing belt in this order.
