Drive Belt: Diagrams (page 3 of 6)
- Make
- Toyota
- Model
- Camry Solara
- Engine
- L4-2.4L (2AZ-FE)
- Year
- 2003
- Section
- Drive Belt
/Page-302001.png)

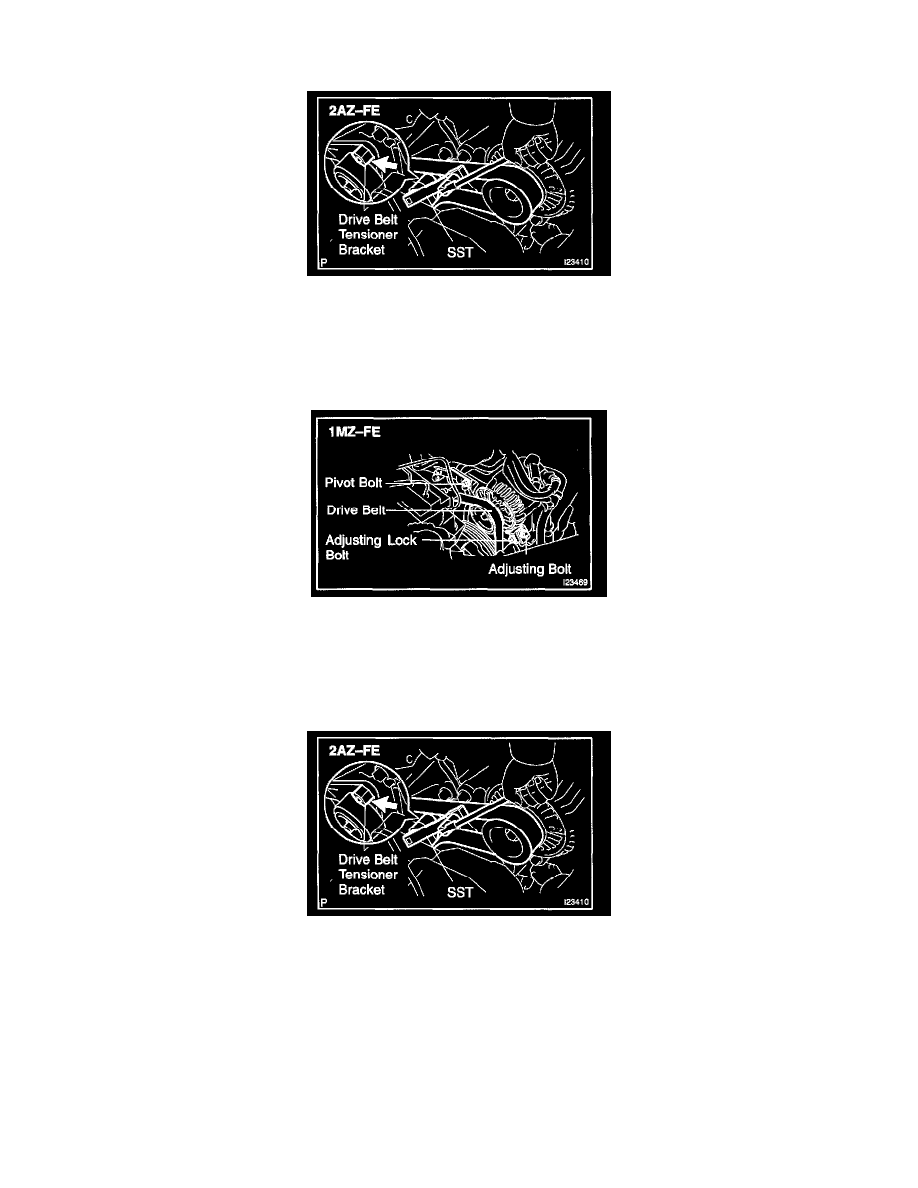

Drive Belt: Service and Repair
REMOVAL
1. 2AZ-FE:
REMOVE DRIVE BELT
Hook SST on the hexagonal portion of the drive belt tensioner bracket, compress the drive belt tension by turning the drive belt tensioner bracket
clockwise, and remove the drive belt.
SST 09249-63010
2. 1MZ-FE:
REMOVE DRIVE BELT
a. Loosen the pivot bolt and adjusting lock bolt.
b. Loosen the drive belt tension by adjusting bolt and remove the drive belt.
INSTALLATION
1. 2AZ-FE:
REMOVE DRIVE BELT
Hook SST on the hexagonal portion of the drive belt tensioner bracket, compress the drive belt tension by turning the drive belt tensioner bracket
clockwise, and install the drive belt.
SST 09249-63010
