Camry Solara L4-2.4L (2AZ-FE) (2003)
/Page-302002.png)

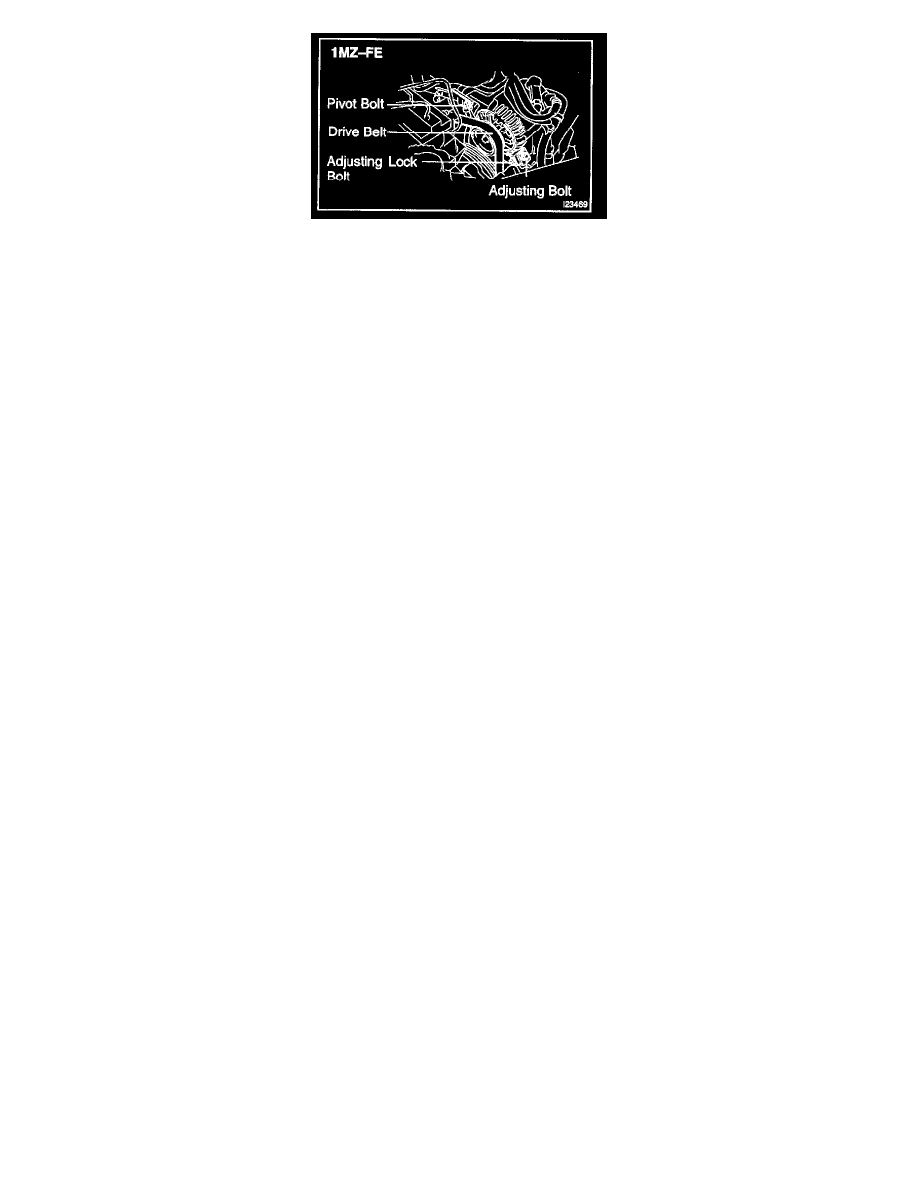

2. 1MZ-FE:
INSTALL DRIVE BELT
a. Install the drive belt.
b. Apply drive belt tension by adjusting bolt.
Drive belt tension:
New belt: 165 ± 26 lbf
Used belt: 110 ± 11 lbf
c. Tighten the adjusting lock bolt and pivot bolt.
Torque:
Pivot bolt: 56 N.m (570 kgf.cm, 41 ft.lbf)
Adjusting lock bolt: 18 N.m (185 kgf.cm, 13 ft.lbf)
