Drive Belt: Testing and Inspection
INSPECTION
INSPECT DRIVE BELT

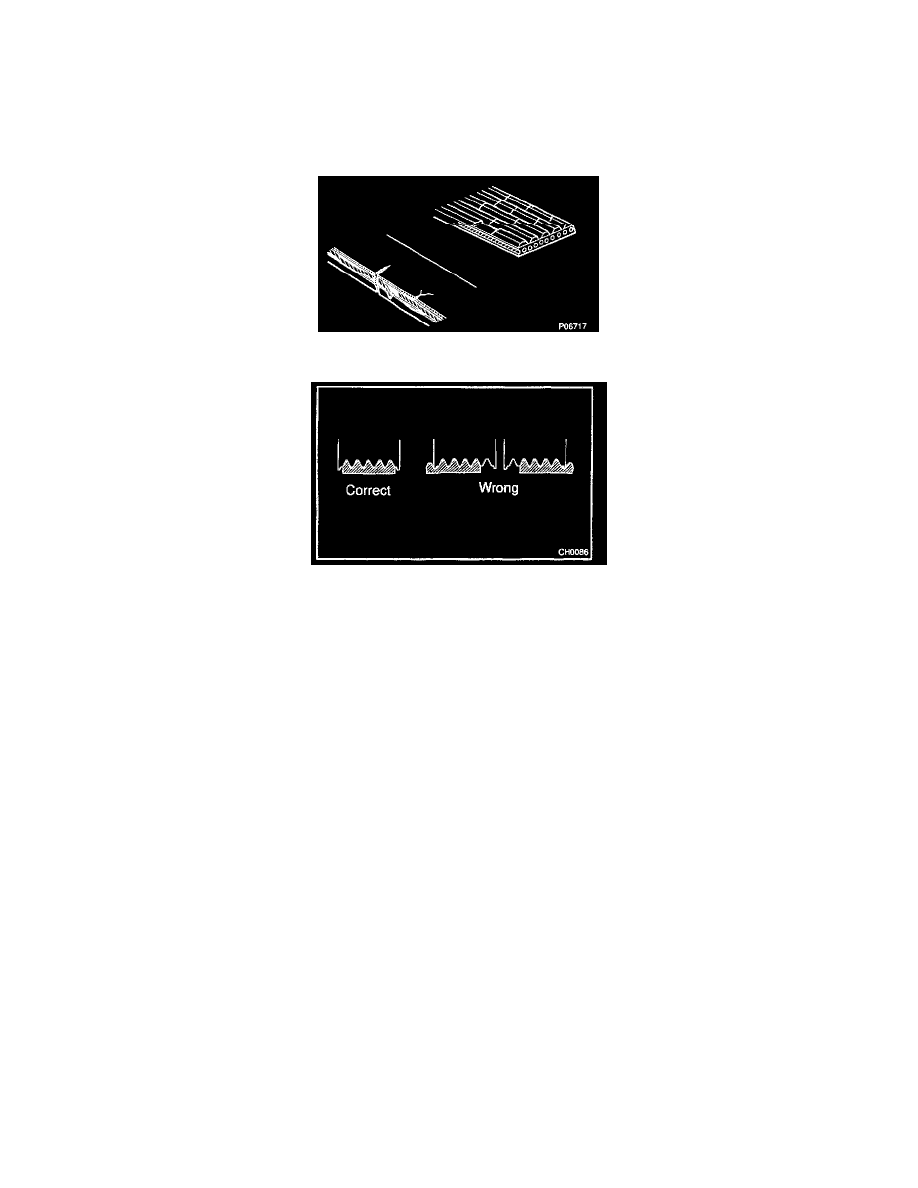

Visually check the drive belt for excessive wear, frayed cords, etc.
If any defect has been found, replace the drive belt.
HINT:
^
Cracks on the rib side of a belt are considered acceptable. If the missing chunks from the ribs are found on the drive belt, it should be replaced.
^
After installing a drive belt, check that it fits properly in the ribbed grooves.
^
Check with your hand to confirm that the drive belt has not slipped out of the groove on the bottom of the pulley.
