Celica GT L4-1.8L (1ZZ-FE) (2001)

Page 1
background image

Flywheel: Specifications

Flywheel

Maximum Runout ..............................................................................................................................................................................  0.1 mm (0.004 inch)

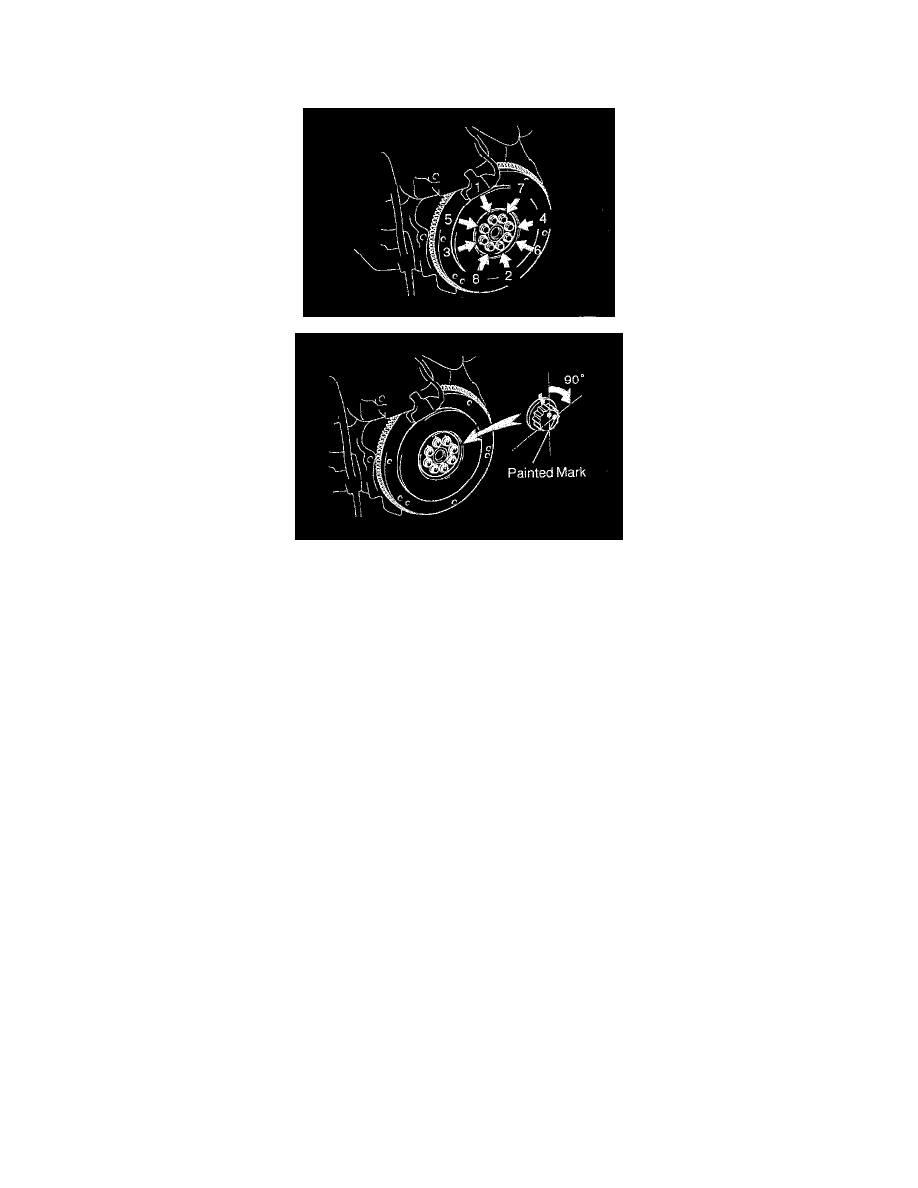

Torque ....................................................................................................................................................................  49 Nm (500 kgf-cm, 36 ft. lbs.) + 90°
