Camshaft: Service and Repair
Removal

2ZR-FE ENGINE MECHANICAL: CAMSHAFT: REMOVAL

REMOVAL

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

HINT:  See: Service and Repair/Removal and Replacement/Engine Assembly/Removal.

2. INSTALL ENGINE STAND See: Service and Repair/Removal and Replacement/Engine Unit/Removal
3. REMOVE INTAKE MANIFOLD See: Intake Manifold/Service and Repair/Removal
4. REMOVE FUEL TUBE SUB-ASSEMBLY See: Powertrain Management/Fuel Delivery and Air Induction/Fuel Injector/Service and

Repair/Removal

5. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY See: Powertrain Management/Fuel Delivery and Air Induction/Fuel Injector/Service and

Repair/Removal

6. REMOVE FUEL INJECTOR ASSEMBLY See: Powertrain Management/Fuel Delivery and Air Induction/Fuel Injector/Service and

Repair/Removal

7. REMOVE IGNITION COIL ASSEMBLY See: Powertrain Management/Ignition System/Ignition Coil/Service and Repair/Removal
8. REMOVE OIL LEVEL DIPSTICK SUB-ASSEMBLY See: Service and Repair/Removal and Replacement/Engine Unit/Removal
9. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR See: Service and Repair/Removal and Replacement/Engine Unit/Removal

10. REMOVE MANIFOLD STAY See: Service and Repair/Removal and Replacement/Engine Unit/Removal
11. REMOVE EXHAUST MANIFOLD See: Service and Repair/Removal and Replacement/Engine Unit/Removal
12. REMOVE VENTILATION HOSE See: Service and Repair/Removal and Replacement/Engine Unit/Removal
13. DISCONNECT NO. 3 WATER BY-PASS HOSE See: Service and Repair/Removal and Replacement/Engine Unit/Removal
14. REMOVE NO. 1 WATER BY-PASS PIPE See: Service and Repair/Removal and Replacement/Engine Unit/Removal
15. REMOVE WATER BY-PASS HOSE See: Service and Repair/Removal and Replacement/Engine Unit/Removal
16. REMOVE INLET WATER HOSE See: Service and Repair/Removal and Replacement/Engine Unit/Removal
17. REMOVE INLET WATER See: Cooling System/Thermostat/Service and Repair/Removal
18. REMOVE THERMOSTAT See: Cooling System/Thermostat/Service and Repair/Removal
19. REMOVE RADIO SETTING CONDENSER See: Service and Repair/Removal and Replacement/Engine Unit/Removal
20. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY See: Service and Repair/Overhaul/Disassembly
21. SET NO. 1 CYLINDER TO TDC/COMPRESSION See: Seals and Gaskets/Cylinder Head Gasket/Service and Repair/Removal
22. REMOVE CRANKSHAFT PULLEY See: Seals and Gaskets/Front Crankshaft Seal/Service and Repair/Removal
23. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY See: Service and Repair/Overhaul/Disassembly
24. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY See: Engine Lubrication/Oil Pump/Service and Repair/Removal and

Replacement/Removal

25. REMOVE TIMING CHAIN COVER OIL SEAL See: Service and Repair/Overhaul/Disassembly
26. REMOVE CHAIN TENSIONER SLIPPER See: Seals and Gaskets/Cylinder Head Gasket/Service and Repair/Removal
27. REMOVE NO. 1 CHAIN VIBRATION DAMPER See: Seals and Gaskets/Cylinder Head Gasket/Service and Repair/Removal
28. REMOVE CHAIN SUB-ASSEMBLY See: Seals and Gaskets/Cylinder Head Gasket/Service and Repair/Removal
29. REMOVE NO. 2 CHAIN VIBRATION DAMPER See: Engine Lubrication/Oil Pump/Service and Repair/Removal and Replacement/Removal
30. INSPECT CAMSHAFT TIMING GEAR ASSEMBLY

(a) Inspect the lock of the camshaft timing gear.

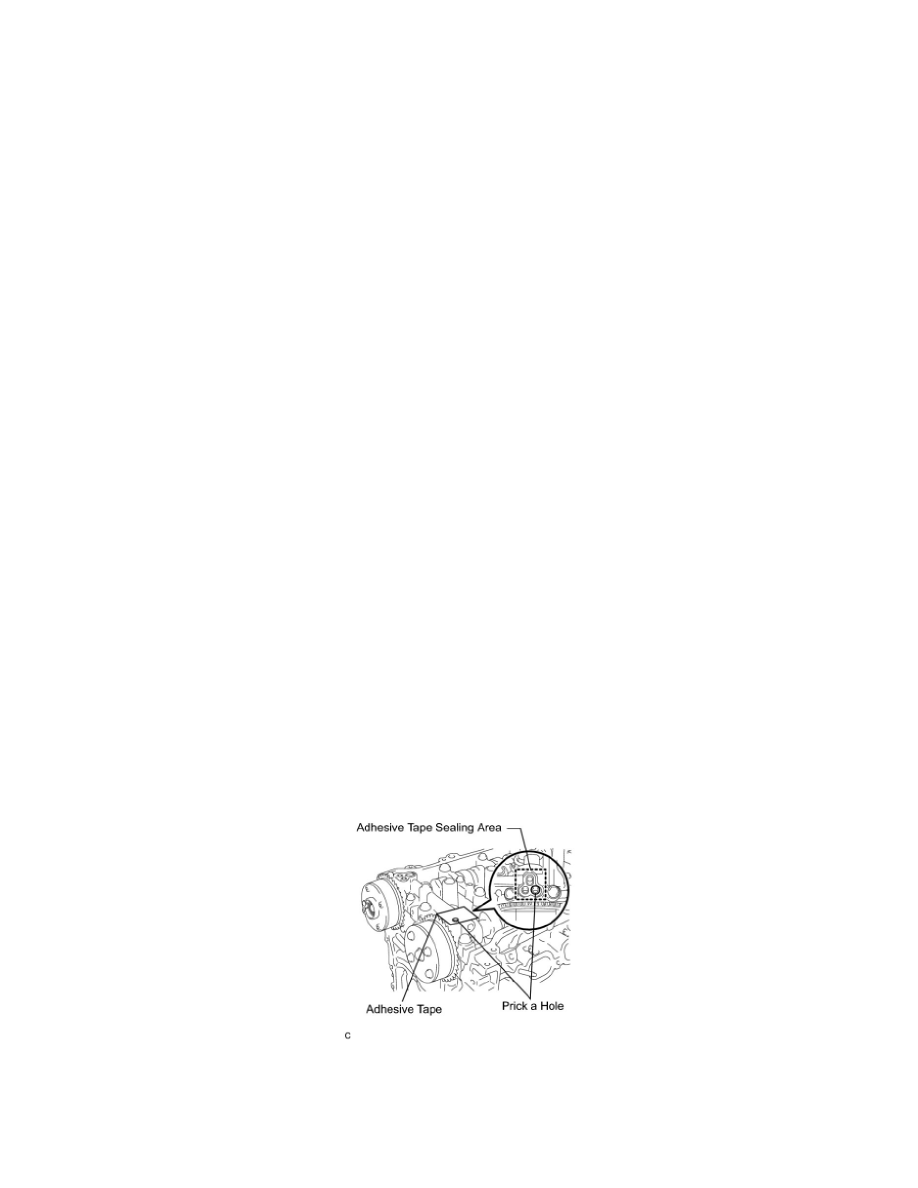

(b) After cleaning and degreasing the VVT oil hole on the intake side of the No. 1 camshaft bearing cap, completely seal the oil hole with adhesive

tape or equivalent as shown in the illustration to prevent air from leaking.
NOTE:  Be sure to cover the oil hole completely because air leaks due to insufficient sealing will prevent the lock pin from being released.

(c) Prick a hole in the tape covering the oil hole as shown in the illustration. (Procedure A)
