Toyota Workshop Service and Repair Manuals > Echo L4-1.5L (1NZ-FE) (2000) > Engine, Cooling and Exhaust | Engine | Timing Components | Timing Chain | Component Information | Diagrams | Page 1052

Timing Chain|Diagrams|Page 1053 > < Timing Chain|Diagrams

Page 2

background image

Part 2 Of 2

Part 2 of 2

Engine, Cooling and Exhaust
Engine
Timing Components

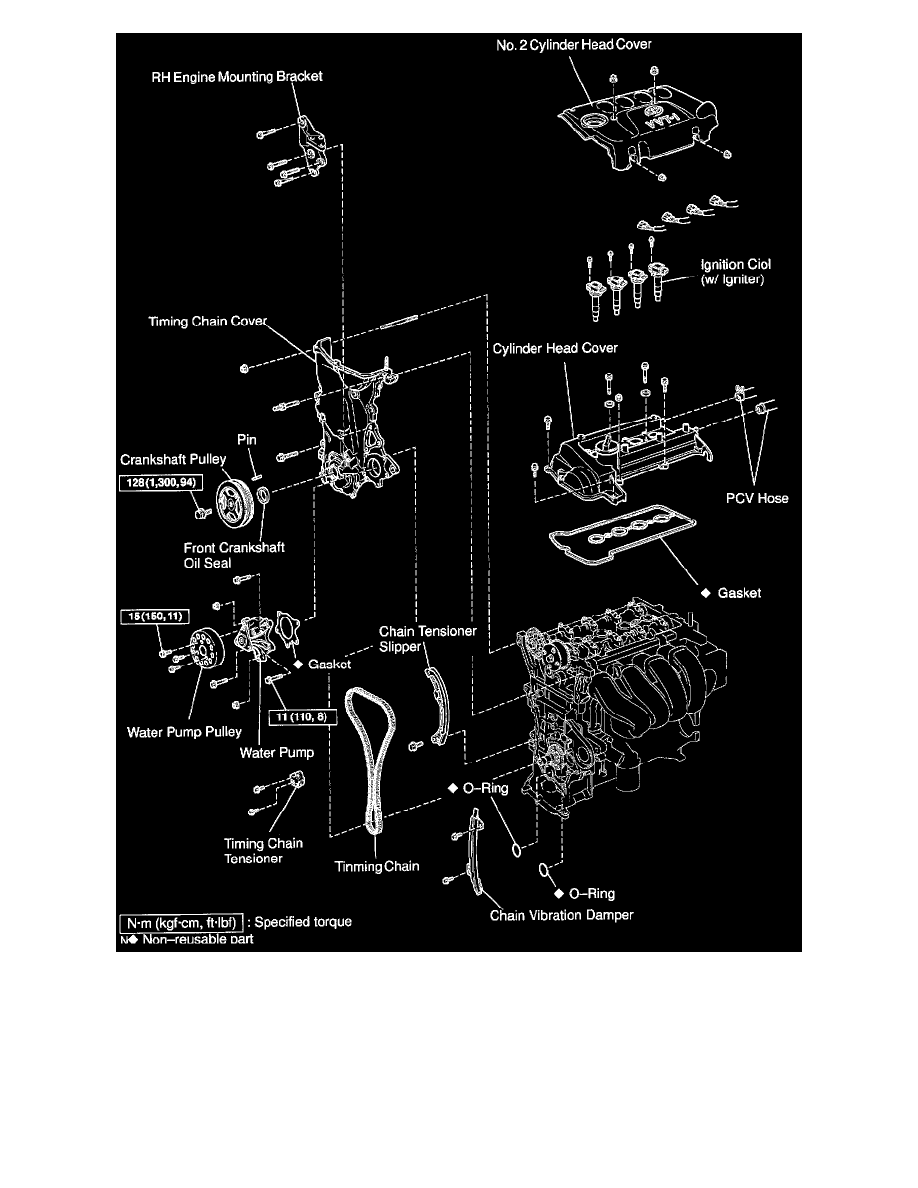

Timing Chain / Diagrams
Page 1052

Timing Chain|Diagrams|Page 1053 > < Timing Chain|Diagrams
