Toyota Workshop Service and Repair Manuals > Echo L4-1.5L (1NZ-FE) (2000) > Engine, Cooling and Exhaust | Engine | Timing Components | Timing Chain | Component Information | Diagrams | Page 1053

Timing Chain|Diagrams|Page 1054 > < Timing Chain|Diagrams|Page 1052

Page 1

background image

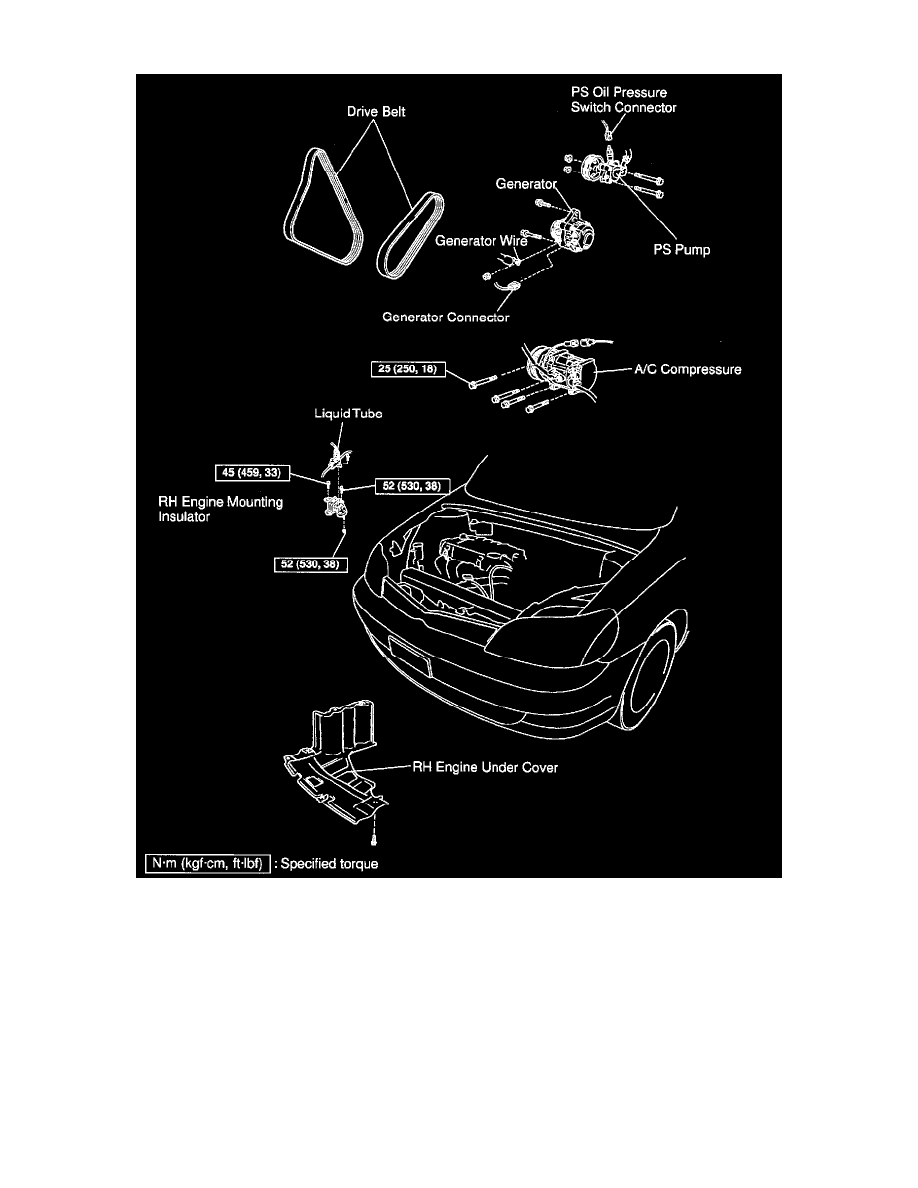

Timing Chain: Service and Repair

Part 1 Of 2

Engine, Cooling and Exhaust
Engine
Timing Components
Timing Chain / Diagrams
Page 1053

Timing Chain|Diagrams|Page 1054 > < Timing Chain|Diagrams|Page 1052
