Page 2

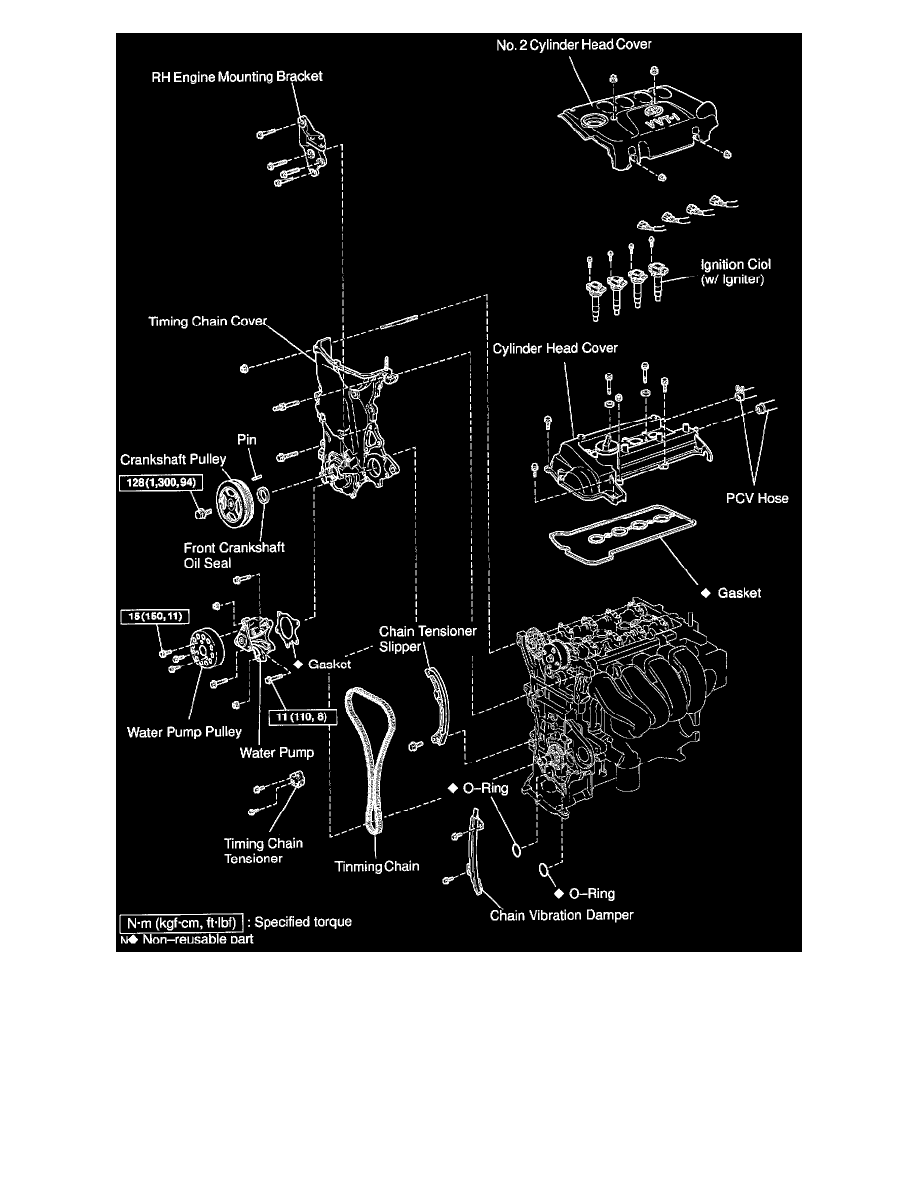

Part 2 Of 2

REMOVAL

1. DRAIN ENGINE COOLANT
2. REMOVE RIGHT-HAND FRONT WHEEL
3. REMOVE RIGHT-HAND ENGINE UNDER COVER
4. REMOVE DRIVE BELT AND GENERATOR
5. DISCONNECT PS PUMP FROM ENGINE
6. REMOVE RIGHT-HAND ENGINE MOUNTING INSULATOR
