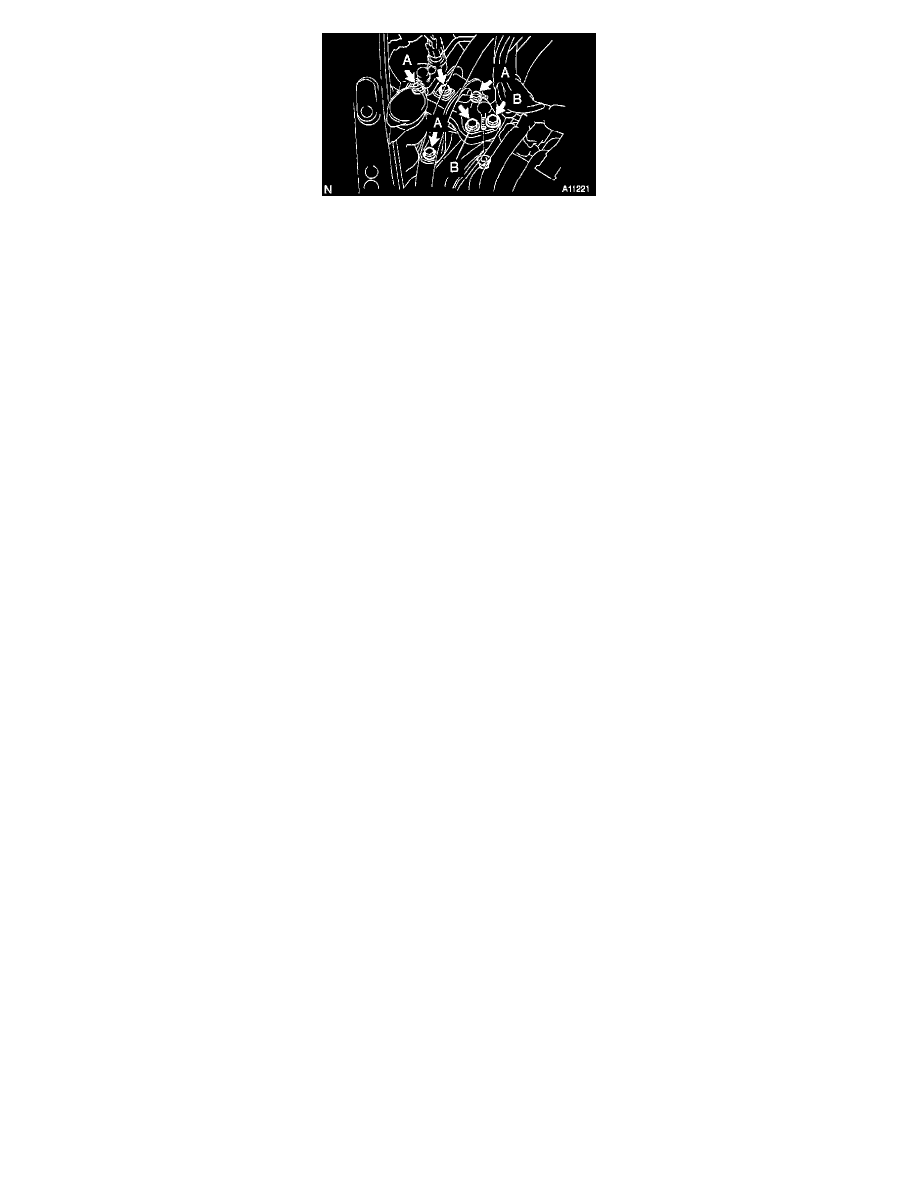

9. INSTALL RIGHT-HAND ENGINE MOUNTING INSULATOR

a. Install the RH engine mounting insulator with the 5 bolts and nut.

Torque:

Bolt A: 45 Nm (459 kgf-cm, 33 ft. lbs.)
Bolt B and nut: 52 Nm (530 kgf-cm, 38 ft. lbs.)

b. w/ A/C: Install the liquid tube with the bolt.

10. INSTALL PS PUMP
11. INSTALL GENERATOR AND DRIVE BELT
12. INSTALL RIGHT-HAND ENGINE UNDER COVER
13. INSTALL RIGHT-HAND FRONT WHEEL
14. FILL WITH ENGINE COOLANT
15. START ENGINE AND CHECK FOR COOLANT LEAKS
