6. INSTALL OIL CONTROL VALVE
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
7. INSTALL CRANKSHAFT PULLEY
a. Clean the crankshaft pulley inside.
b. Install the pin to the crankshaft.
c. Align the hole in the crank pulley with the pin position and install the crank pulley.

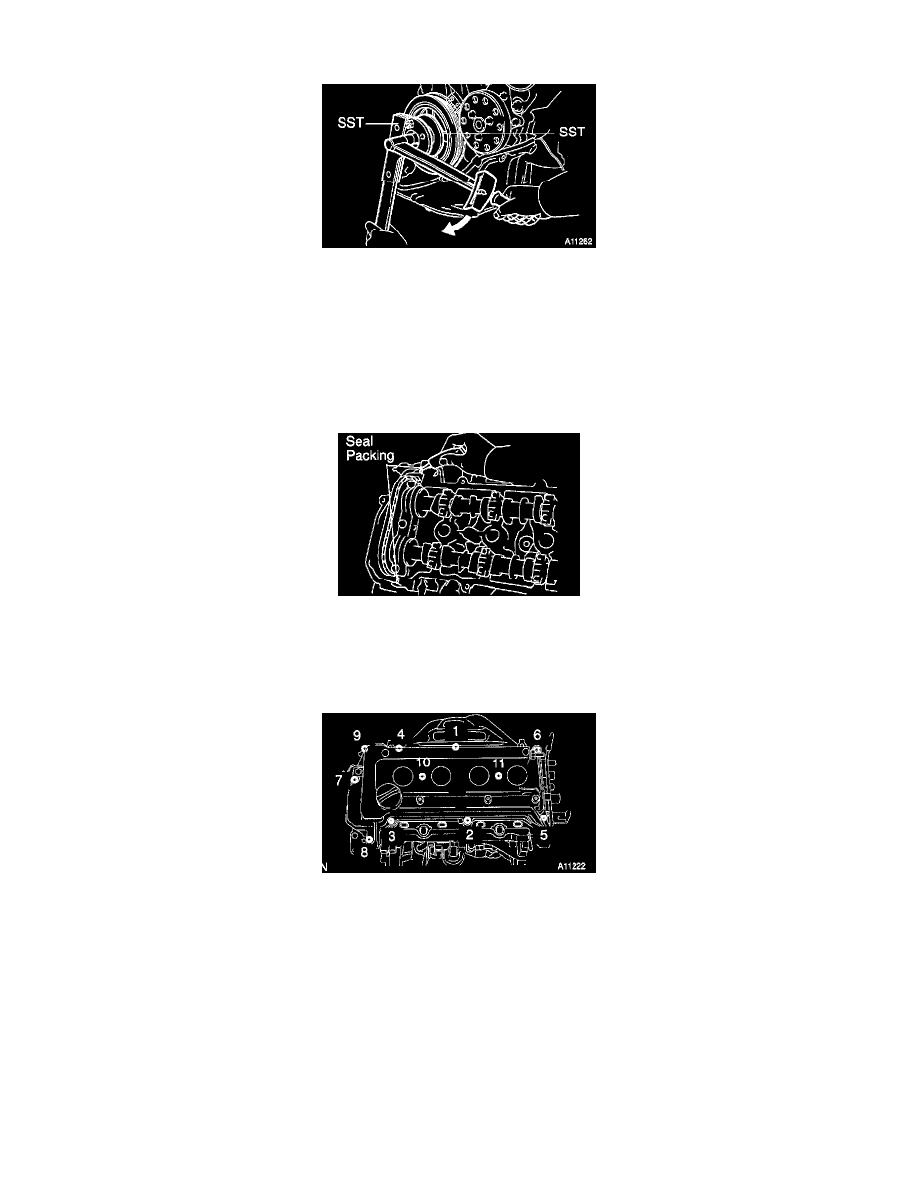

d. Using Special Service Tool (SST), install the pulley bolt.
(SST) 09213-70010, 09330-00021
Torque: 128 Nm (1,300 kgf-cm, 94 ft. lbs.)
8. INSTALL CYLINDER HEAD COVER
a. Remove any old packing (FIPG) material.
b. Apply seal packing to 2 locations as shown in the illustration.
Seal packing: Part No. 08826 - 00080 or equivalent
c. Install the gasket to the cylinder head cover.
HINT: Part must be assembled within 3 minutes of application.
d. Otherwise the material must be remove and reapplied. Install the cylinder head cover and cable bracket with the 7 bolts, 2 seal washers and 2
nuts.
Uniformly tighten the bolts and nuts, in the several passes, in the sequence shown.
Torque: 10 Nm (100 kgf-cm, 7 ft. lbs.)
e. Connect the 2 PCV hoses to the cylinder head cover.
f.
Install the ignition coil.
