Page 9
background image

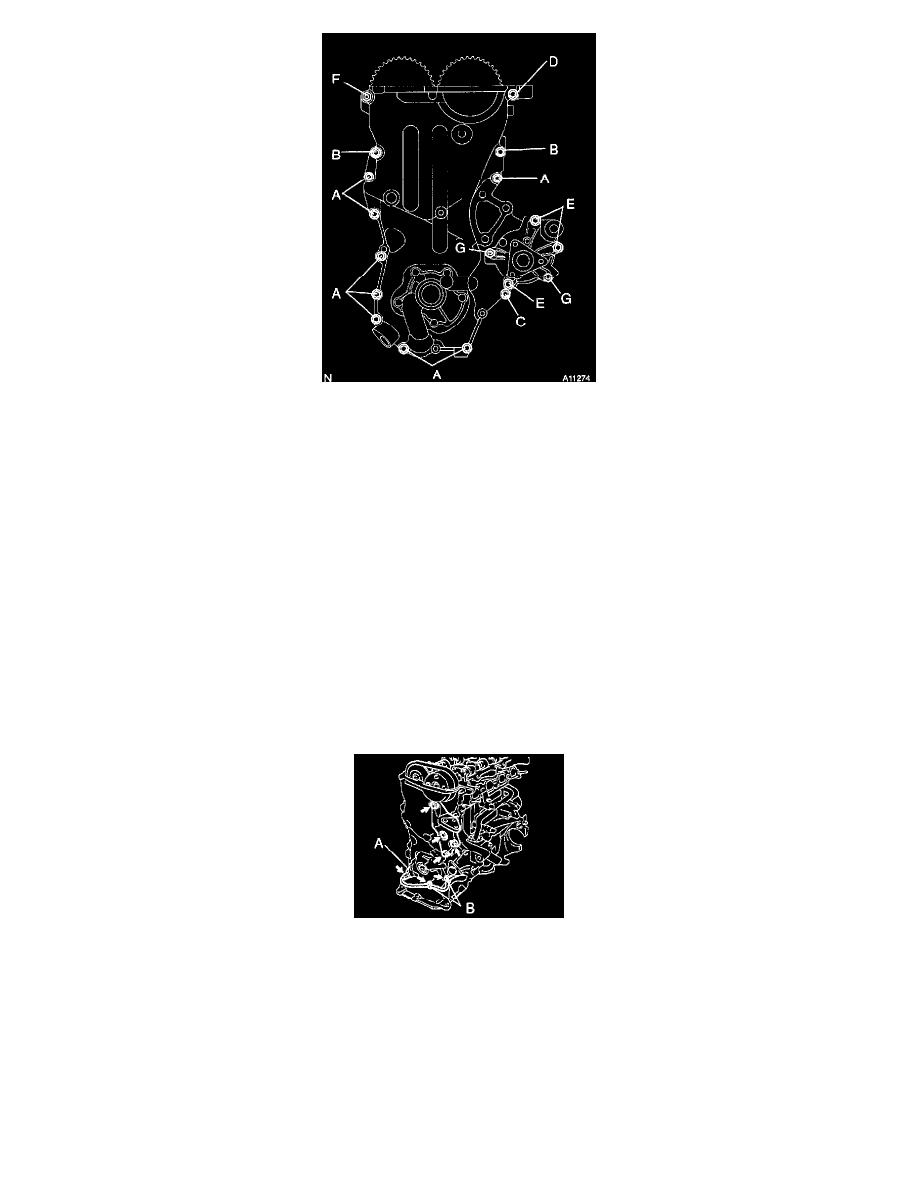

e. Install the timing chain cover, new O-ring and water pump with the 15 bolts and 3 nuts. Uniformly tighten the bolts and nut in several passes.

Torque:

Bolt A: 11 Nm (113 kgf-cm, 8 ft. lbs.)
Bolt B: 24 Nm (245 kgf-cm, 18 ft. lbs.)
Bolt C: 11 Nm (113 kgf-cm, 8 ft. lbs.)
Bolt D: 24 Nm (245 kgf-cm, 18 ft. lbs.)
Bolt E: 11 Nm (113 kgf-cm, 8 ft. lbs.)
Nut F: 24 Nm (245 kgf-cm, 18 ft. lbs.)
Nut G: 11 Nm (113 kgf-cm, 8 ft. lbs.)

NOTICE:
-

Pay attention not to wrap the chain and slipper over the chain cover seal line.

-

After installing the chain cover, must install the mounting bracket and water pump within 15 minutes.

HINT:  Each bolt length in indicated in the illustration.
A: 20 mm (0.787 inch)
B: 30 mm (1.181 inch)
C: 35 mm (1.378 inch)
D: 20 - 14 mm (0.787 - 0.551 inch)
E: 35 mm (1.378 inch)

4. INSTALL RIGHT-HAND ENGINE MOUNTING BRACKET

a. Apply seal packing to threads of the mounting bolt.

Seal packing: Part No. 08826-00080 or equivalent

HINT:  Do not apply seal packing to 2 or 3 threads of the bolt end.

b. Install the mounting bracket with the 4 bolts.

Torque: 55 Nm (561 kgf-cm, 41 ft. lbs.)

5. INSTALL CRANKSHAFT POSITION SENSOR

Torque:

Bolt A: 7.5 Nm (76 kgf-cm, 66 inch lbs.)
Bolt B: 11 Nm (113 kgf-cm, 8 ft. lbs.)
