Echo L4-1.5L (1NZ-FE) (2000)
/Page-486001.png)

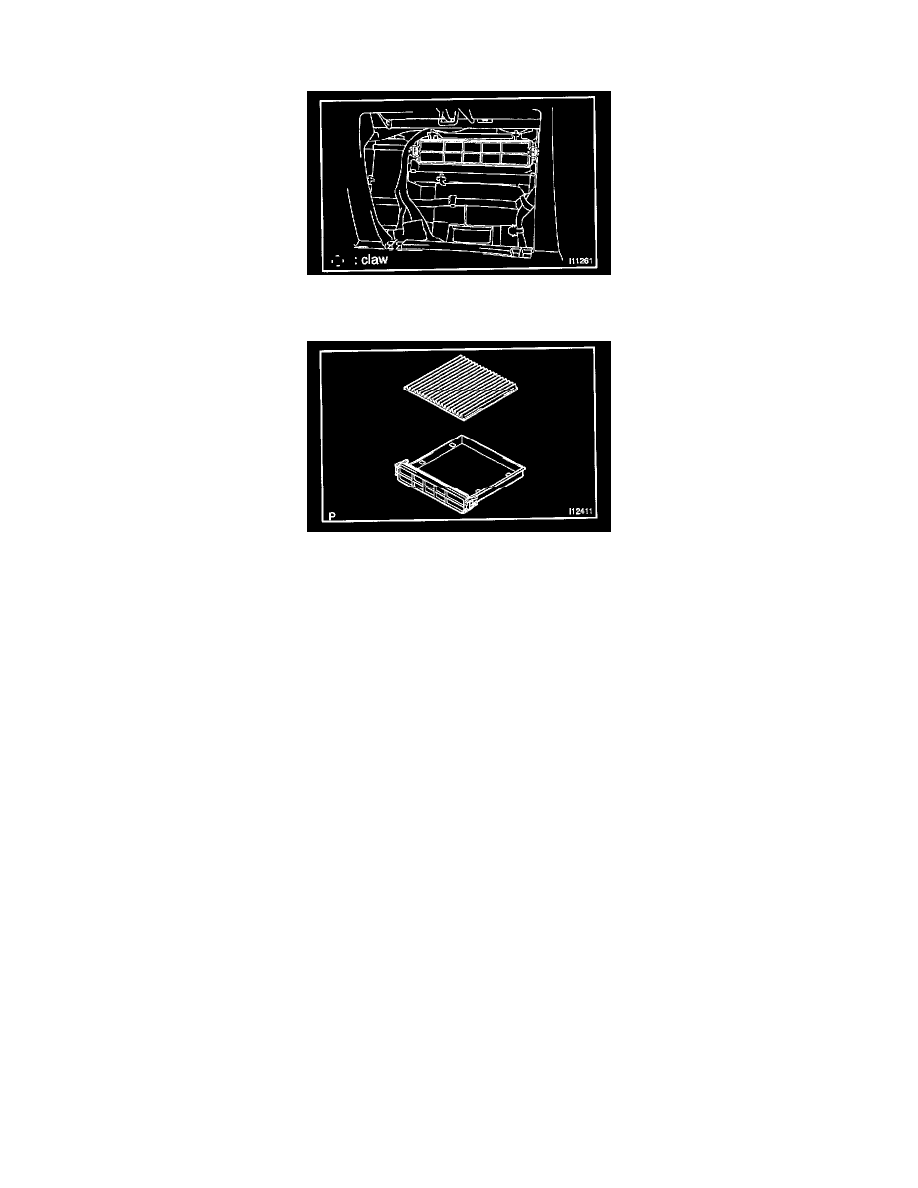

Air Filter Element: Service and Repair
1. REMOVE GLOVE COMPARTMENT DOOR.
2. REPLACE AIR REFINER FILTER.
a. Release the 2 claws and pull out the filter case.
b. Remove the filter.
c. Install the new filter.
d. Install the filter case to A/C unit.
3. INSTALL GLOVE COMPARTMENT DOOR.
