Highlander 4WD V6-3.0L (1MZ-FE) (2003)

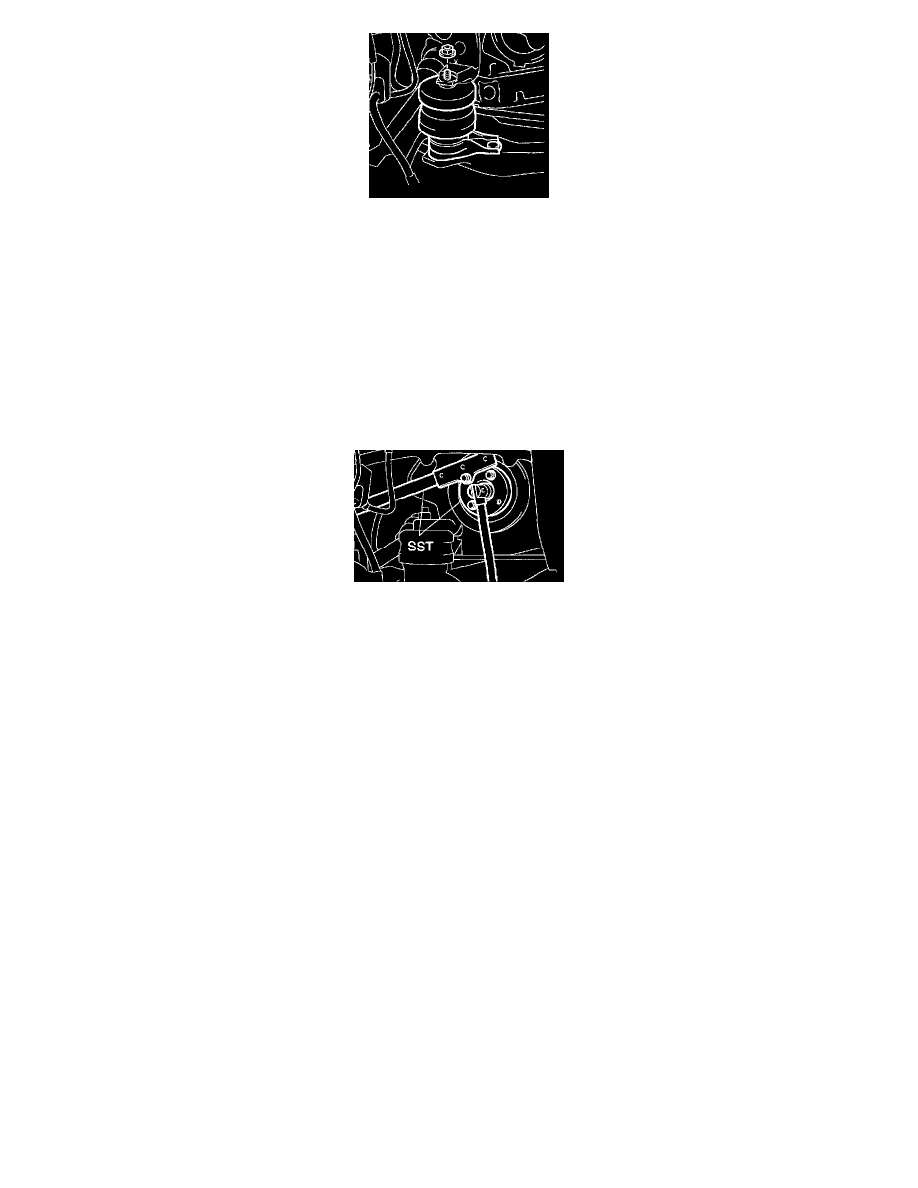

c. Install the engine mounting insulator RH with the nut.
Torque: 95 Nm (969 kgf-cm, 70 ft. lbs.)
19. INSTALL TIMING BELT NO.2 COVER
a. Visually check the crack and break in the gasket of the timing belt cover.
If it is judged that water is entering at the visual check, replace the timing belt cover.
b. Install the timing belt cover.
Torque: 8.5 Nm (87 kgf-cm, 76 inch lbs.)
20. INSTALL TIMING BELT NO.1 COVER
a. Visually check the crack and break in the gasket of the timing belt cover.
If it is judged that water is entering at the visual check, replace the timing belt cover.
b. Install the timing belt cover.
Torque: 8.5 Nm (87 kgf-cm, 76 inch lbs.)
c. Install the engine wire protector cover to the timing belt No. 3 cover.
21. INSTALL CRANKSHAFT PULLEY
a. Align the pulley set key with the key groove of the pulley, and slide on the pulley.
b. Using SST, install the pulley bolt.
SST 09213-54015 (91651-60855), 09330-00021
Torque: 215 Nm (2,192 kgf-cm, 159 ft. lbs.)
22. INSTALL GENERATOR BRACKET NO.2
Torque: 28 Nm (286 kgf-cm, 21 ft. lbs.)
23. INSTALL ENGINE MOUNTING STAY NO.2 RH
24. INSTALL ENGINE MOVING CONTROL ROD
25. INSTALL VANE PUMP V BELT
26. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
27. INSPECT DRIVE BELT DEFLECTION AND TENSION (REFERENCE)
28. INSTALL FRONT WHEEL RH
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
