Page 1

background image

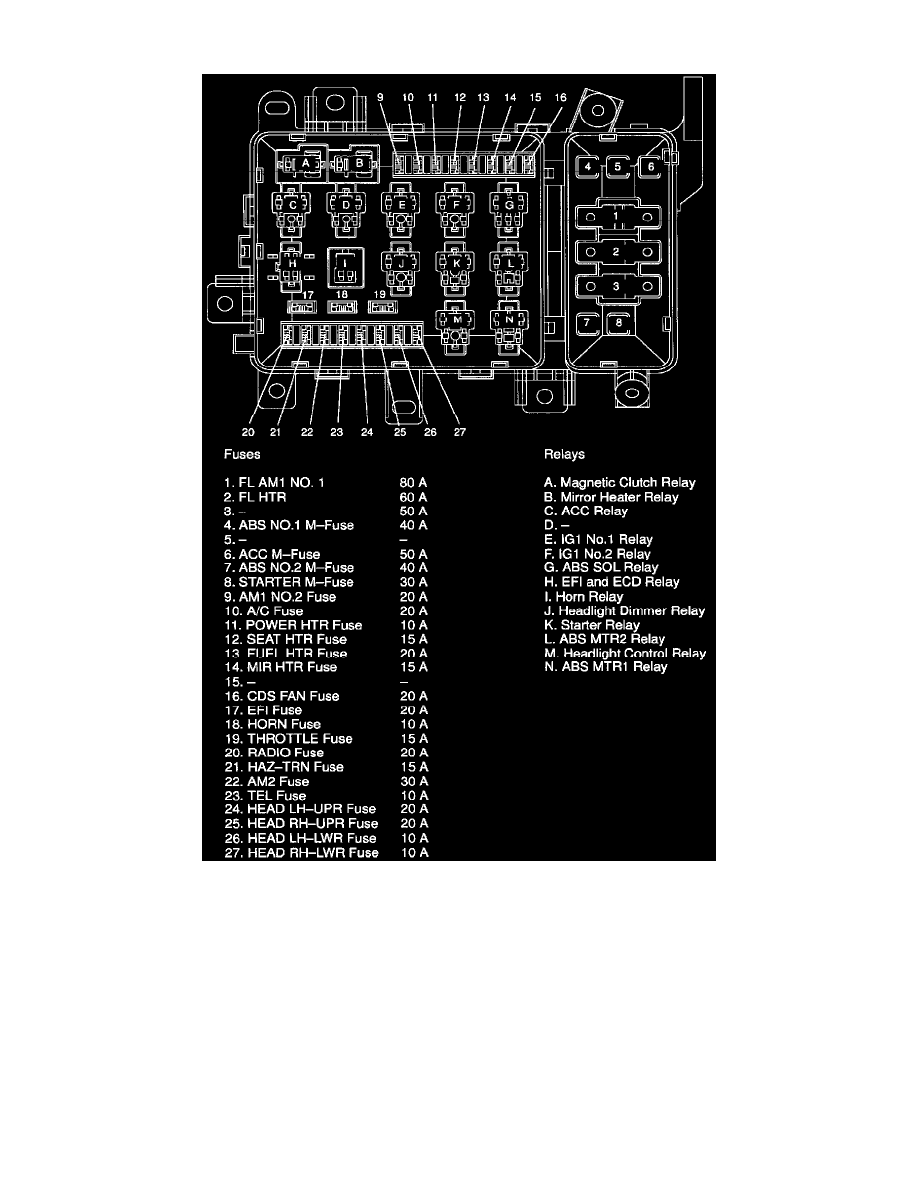

Fuse: Locations

Engine Room Junction Block

Power and Ground Distribution
Fuse
Component Information
Locations
