Relay Box: Locations
- Make
- Toyota
- Model
- Matrix
- Engine
- L4-1.8L (1ZZ-FE)
- Year
- 2008
- Section
- Relay Box › Locations
Power and Ground DistributionLocations · page 1 of 2

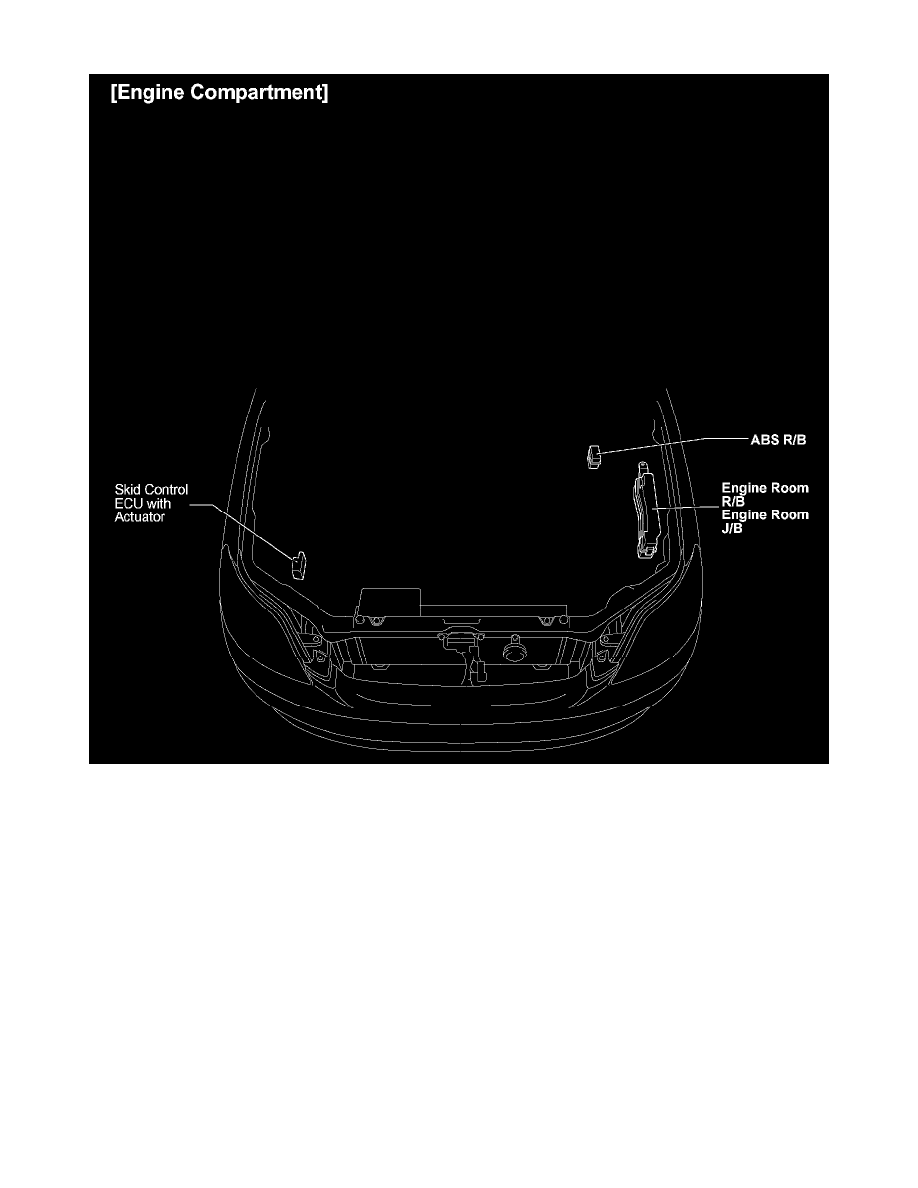

Relay Box: Locations – diagram from the Power and Ground Distribution chapter of the Toyota Matrix L4-1.8L (1ZZ-FE) (2008) factory manual.
/Page-1125001.png)
Relay Box: Locations
Engine Compartment
