Matrix L4-1.8L (1ZZ-FE) (2008)
/Page-886001.png)
Flywheel: Specifications
FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)
-

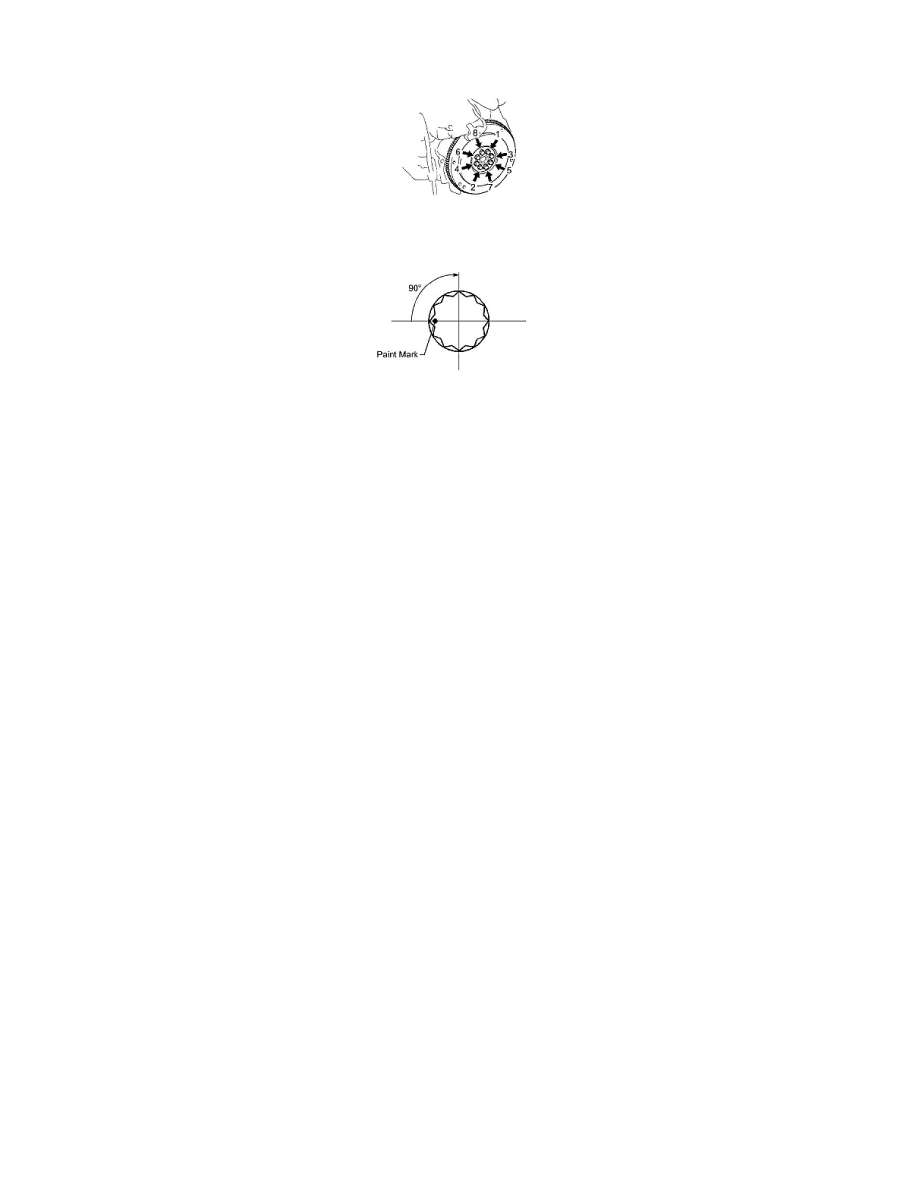

Using several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration (Procedure "A").
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
-
Mark the bolts with paint as shown in the illustration.
-
Retighten the bolts 90° in the same sequence as procedure "A".
-
Check that the paint marks of each bolt are at a 90° angle from the original position.
