Matrix AWD L4-2.4L (2AZ-FE) (2009)
/Page-180004.png)
5. REMOVE REAR SEATBACK INNER HINGE COVER (for LH Side) See: Body and Frame/Seats/Service and Repair/Rear Seat
Assembly/Removal
6. REMOVE REAR SEATBACK ASSEMBLY LH See: Body and Frame/Seats/Service and Repair/Rear Seat Assembly/Removal
7. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
8. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
9. DISCONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY See: Restraint Systems/Seat Belt Systems/Seat Belt/Service and
Repair/Rear Seat Outer Belt Assembly/Removal
10. REMOVE REAR SEATBACK OUTER HINGE COVER (for RH Side) See: Body and Frame/Seats/Service and Repair/Rear Seat
Assembly/Removal
11. REMOVE REAR SEATBACK INNER HINGE COVER (for RH Side) See: Body and Frame/Seats/Service and Repair/Rear Seat
Assembly/Removal
12. REMOVE REAR SEATBACK ASSEMBLY RH See: Body and Frame/Seats/Service and Repair/Rear Seat Assembly/Removal
13. REMOVE REAR DOOR SCUFF PLATE LH (for LH Side) See: Body and Frame/Interior Moulding / Trim/Headliner/Service and
Repair/Removal
14. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (for LH Side) See: Body and Frame/Interior Moulding /
Trim/Headliner/Service and Repair/Removal
15. REMOVE REAR DOOR SCUFF PLATE RH (for RH Side) See: Body and Frame/Interior Moulding / Trim/Headliner/Service and
Repair/Removal
16. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (for RH Side) See: Body and Frame/Interior Moulding /
Trim/Headliner/Service and Repair/Removal
17. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for LH Side) See: Body and Frame/Interior Moulding / Trim/Headliner/Service and
Repair/Removal
18. REMOVE REAR SEAT SIDE GARNISH LH (for LH Side) See: Body and Frame/Interior Moulding / Trim/Headliner/Service and
Repair/Removal
19. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side) See: Body and Frame/Interior Moulding / Trim/Headliner/Service and
Repair/Removal
20. REMOVE REAR SEAT SIDE GARNISH RH (for RH Side) See: Body and Frame/Interior Moulding / Trim/Headliner/Service and
Repair/Removal
21. REMOVE REAR WHEEL

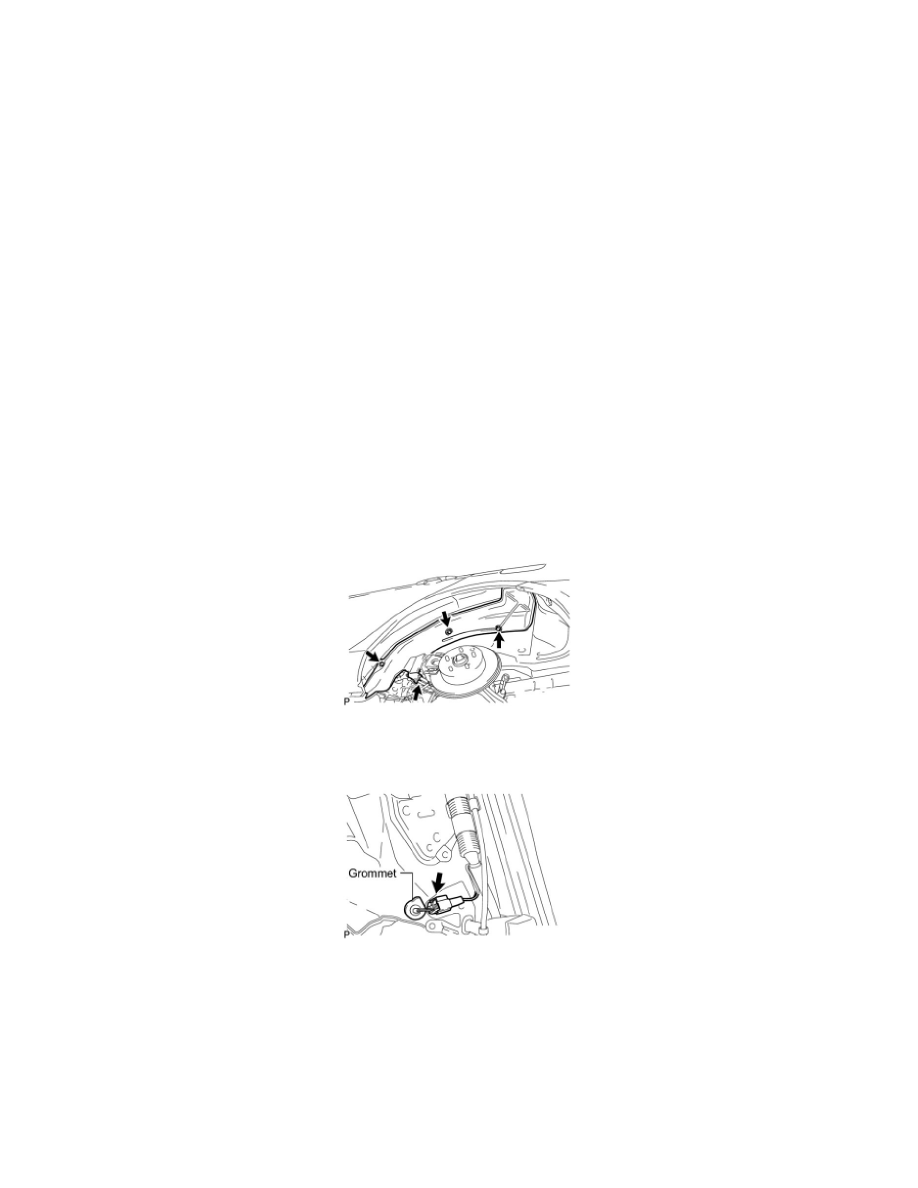

22. REMOVE FUEL TANK FILLER PIPE PROTECTOR (for LH Side)
(a) Remove the 3 bolts and fuel tank filler pipe protector.
23. REMOVE REAR SPEED SENSOR LH (for LH Side)
(a) Disconnect the rear speed sensor connector.
(b) Disconnect the grommet of the rear speed sensor wire from the hole in the wheel well.
(c) Remove bolt A and separate the No. 3 sensor clamp.
