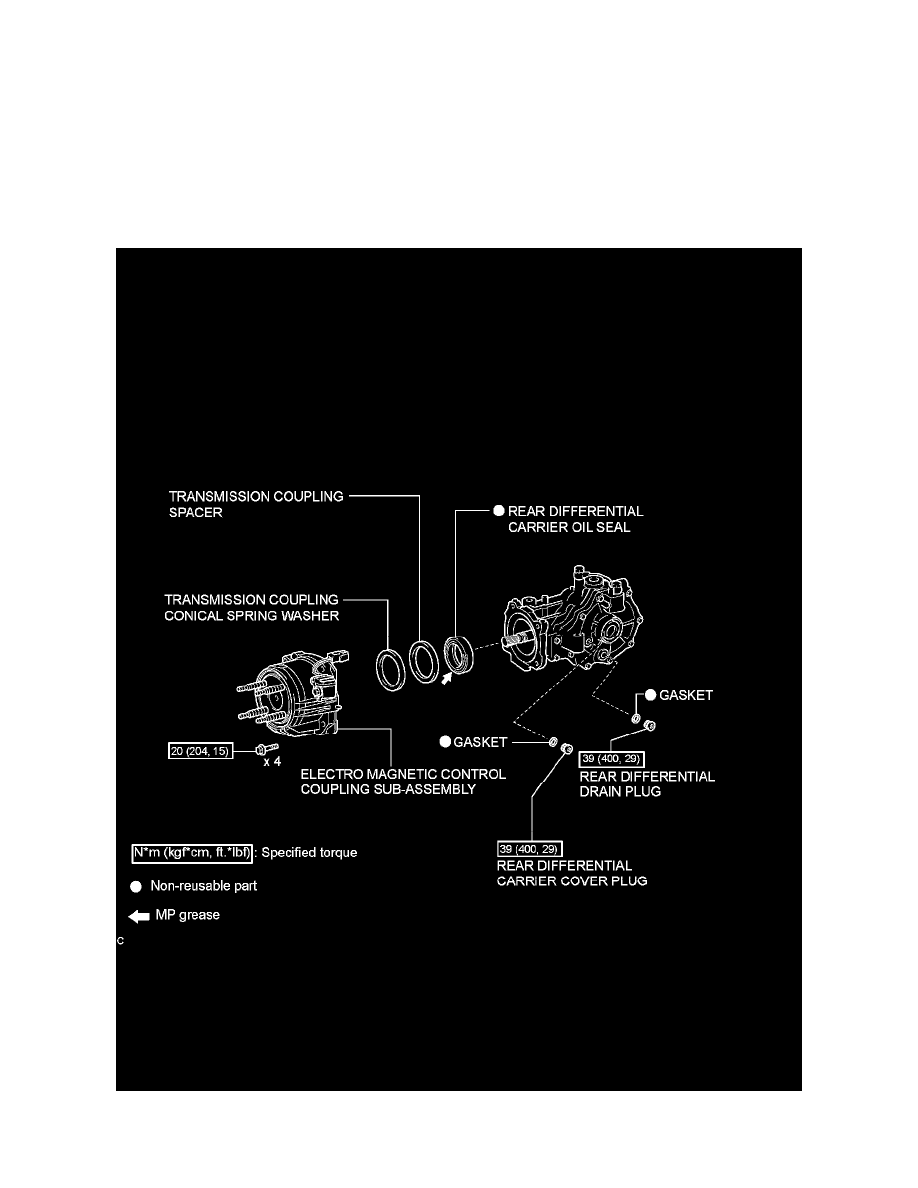

Matrix AWD L4-2.4L (2AZ-FE) (2009)
/Page-1319003.png)

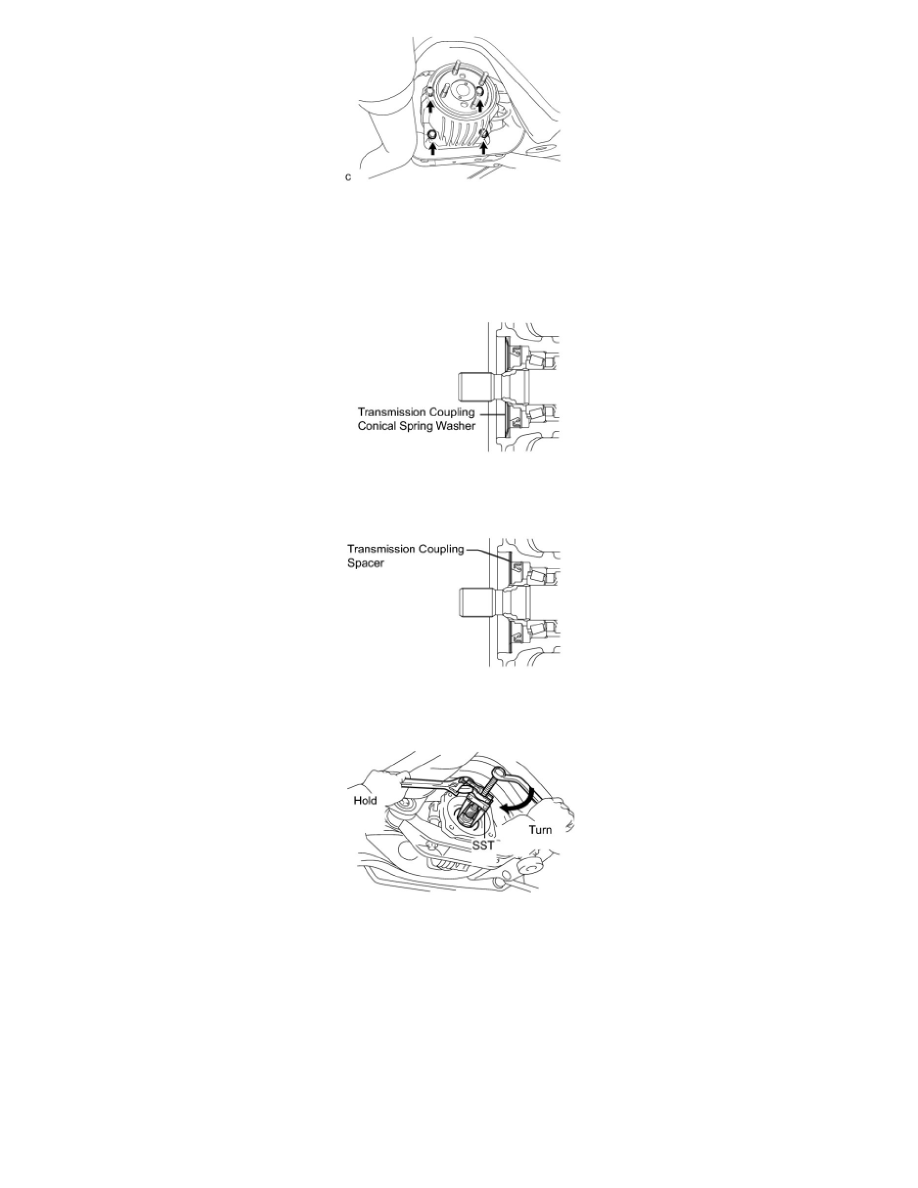

(b) Remove the 4 bolts.
(c) Using a brass bar and a hammer, tap the electro magnetic control coupling sub-assembly to remove the rear differential carrier cover together
with the electro magnetic control coupling sub-assembly from the rear differential carrier assembly.
NOTE: Do not drop the electro magnetic control coupling sub-assembly.
4. REMOVE TRANSMISSION COUPLING CONICAL SPRING WASHER
(a) Remove the transmission coupling conical spring washer from the rear differential carrier assembly.
5. REMOVE TRANSMISSION COUPLING SPACER
(a) Remove the transmission coupling spacer from the rear differential carrier assembly.
6. REMOVE REAR DIFFERENTIAL CARRIER OIL SEAL
(a) Using SST, remove the rear differential carrier oil seal.
SST: 09308-10010
7. INSTALL REAR DIFFERENTIAL CARRIER OIL SEAL
(a) Apply MP grease to the lip of a new rear differential carrier oil seal.
