Flywheel: Specifications
- Make
- Toyota
- Model
- Matrix FWD
- Engine
- L4-2.4L (2AZ-FE)
- Year
- 2009
- Section
- Flywheel › Specifications
Transmission and DrivetrainSpecifications
/Page-1334001.png)
Flywheel: Specifications
FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

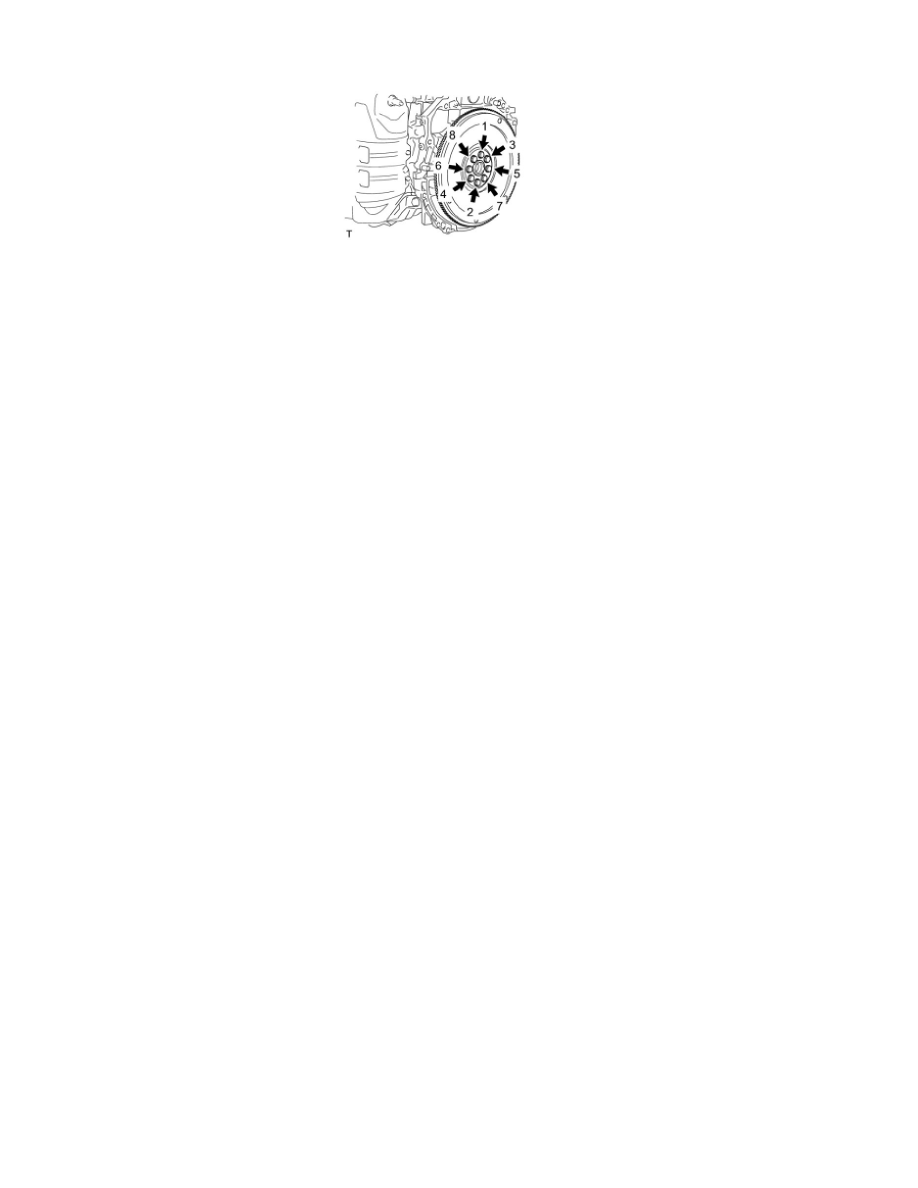

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque...................................................................................................................................................................................130 Nm (1326 kgf-cm, 96 ft-lbf)
