Previa Van 2WD L4-148.8 2438cc 2.4L DOHC (2TZ-FE) (1992)

Page 1
background image

Cold Start Injector Time Switch: Locations

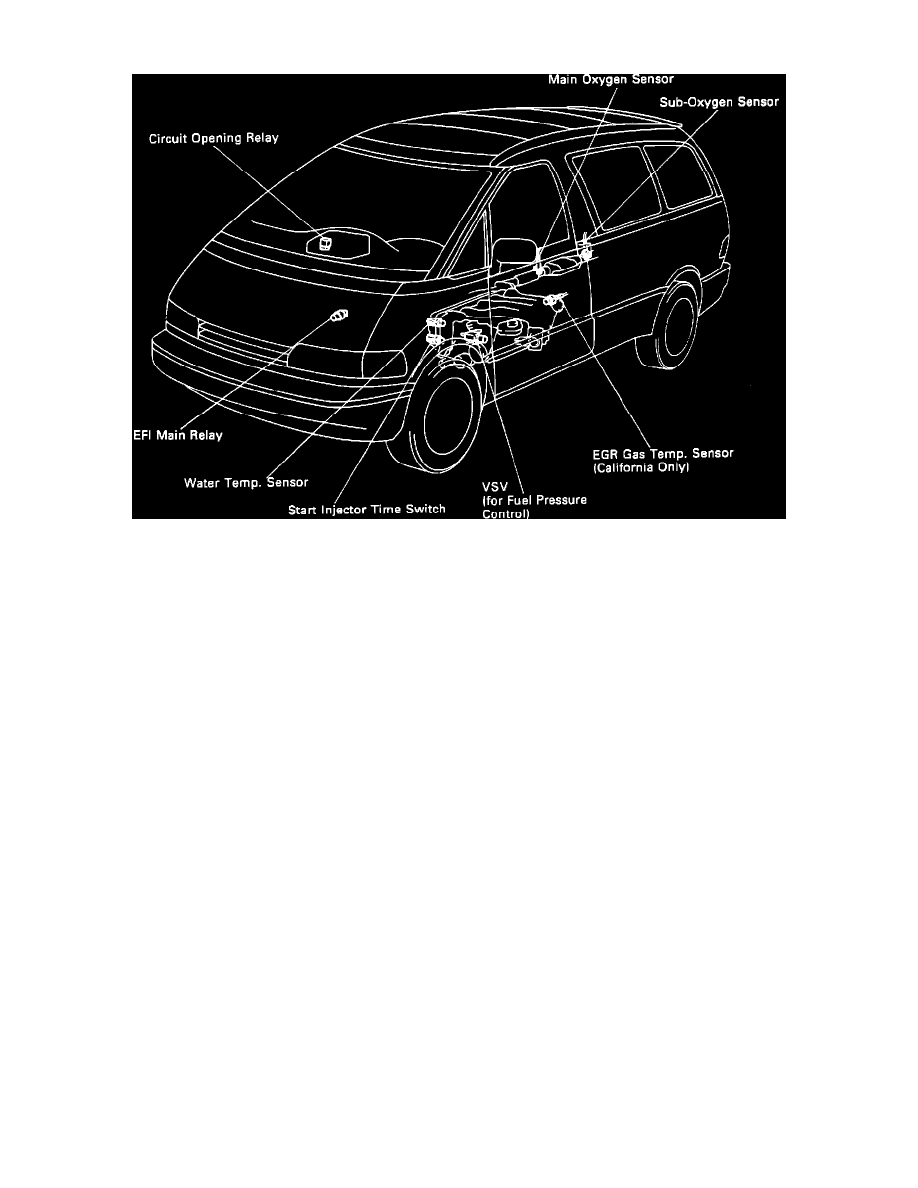

Computerized Engine Control Parts Locations

The cold start injector time switch is mounted in the coolant return neck at the front of the engine.
