Timing Belt: Specifications (page 3 of 4)
- Make
- Toyota
- Model
- RAV4 4WD
- Engine
- L4-2.0L (3S-FE)
- Year
- 1996
- Section
- Timing Belt
MaintenanceSpecifications · page 3 of 4

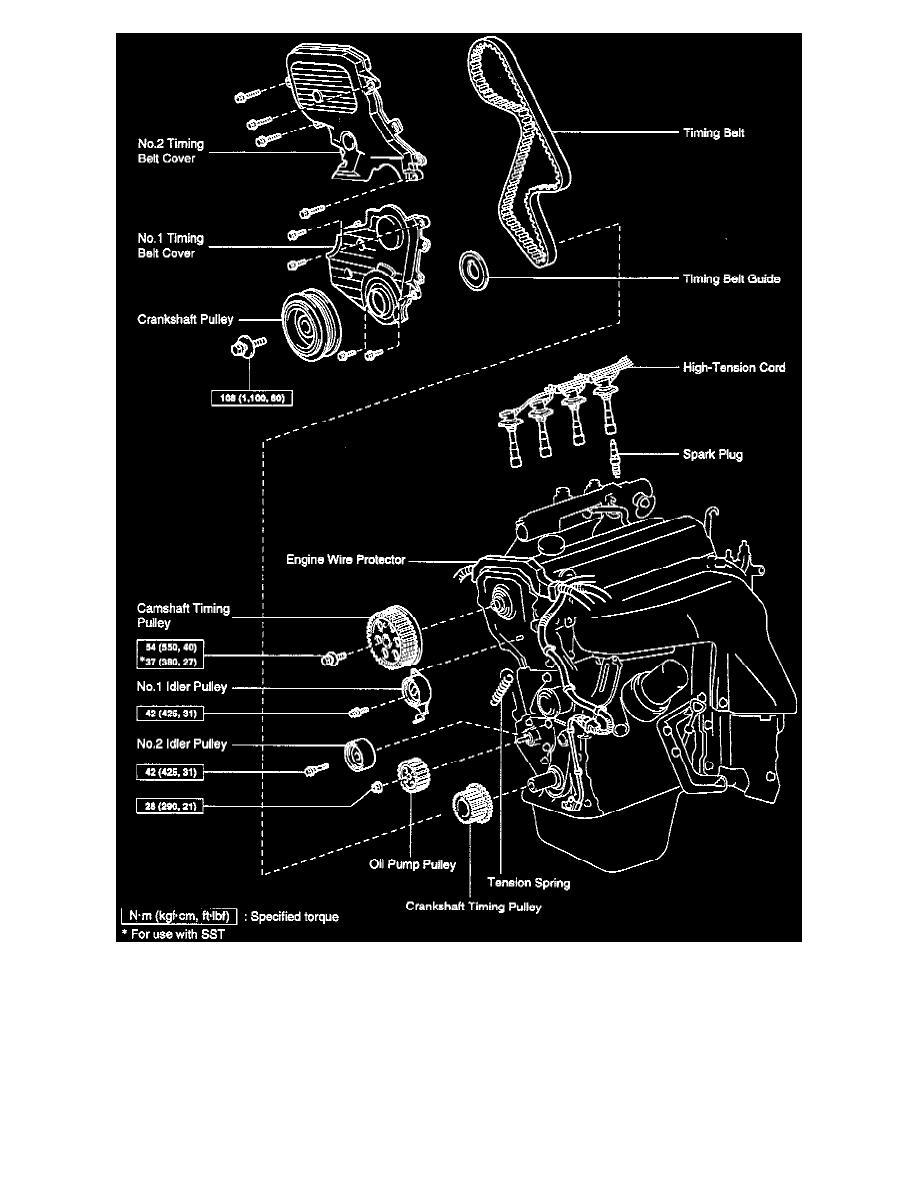

Timing Belt: Specifications (page 3 of 4) – diagram from the Maintenance chapter of the Toyota RAV4 4WD L4-2.0L (3S-FE) (1996) factory manual.
/Page-117002.png)
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
