RAV4 4WD L4-2.5L (2AR-FE) (2009)
/Page-1700001.png)

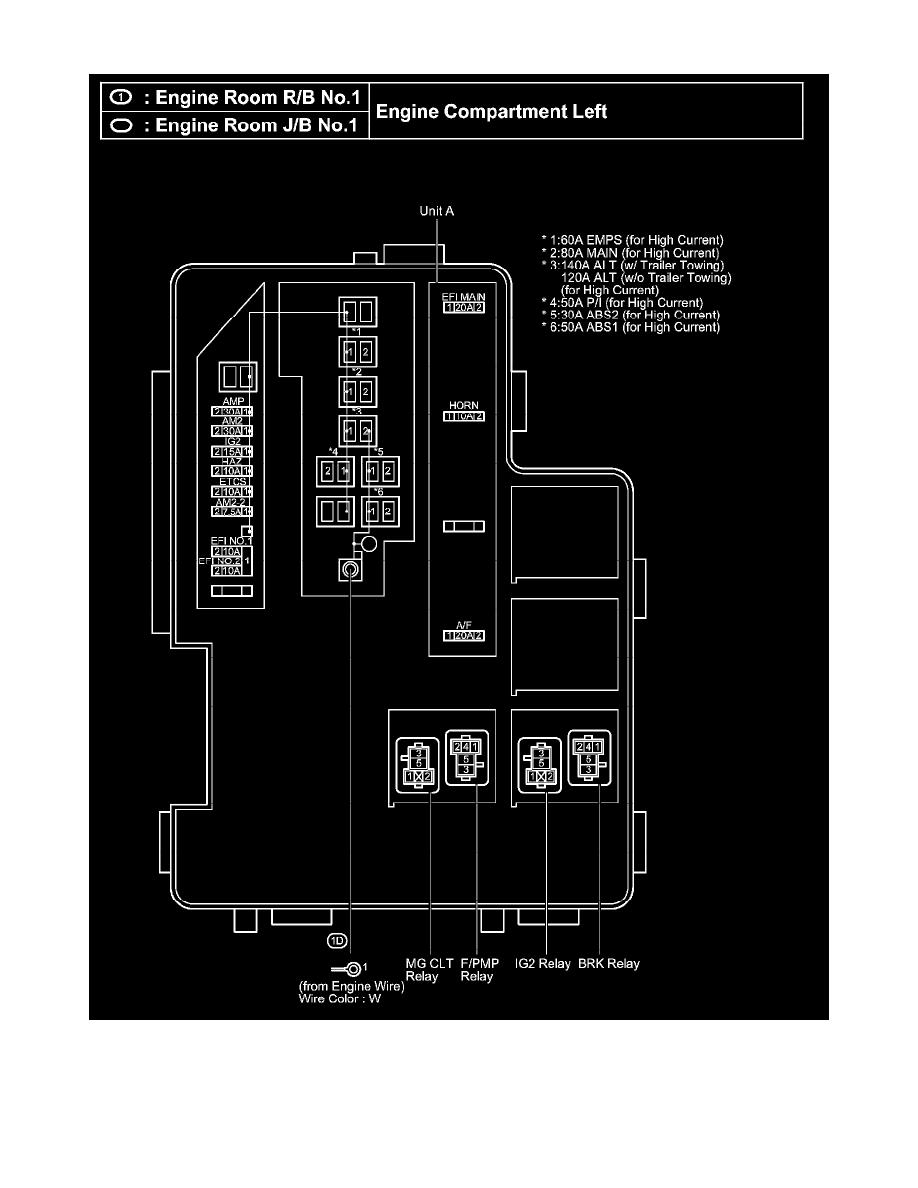

Fuse: Locations
Engine Room R/B No.1, J/B No.1 - Engine Compartment Left
