Alignment: Specifications
Service Data

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

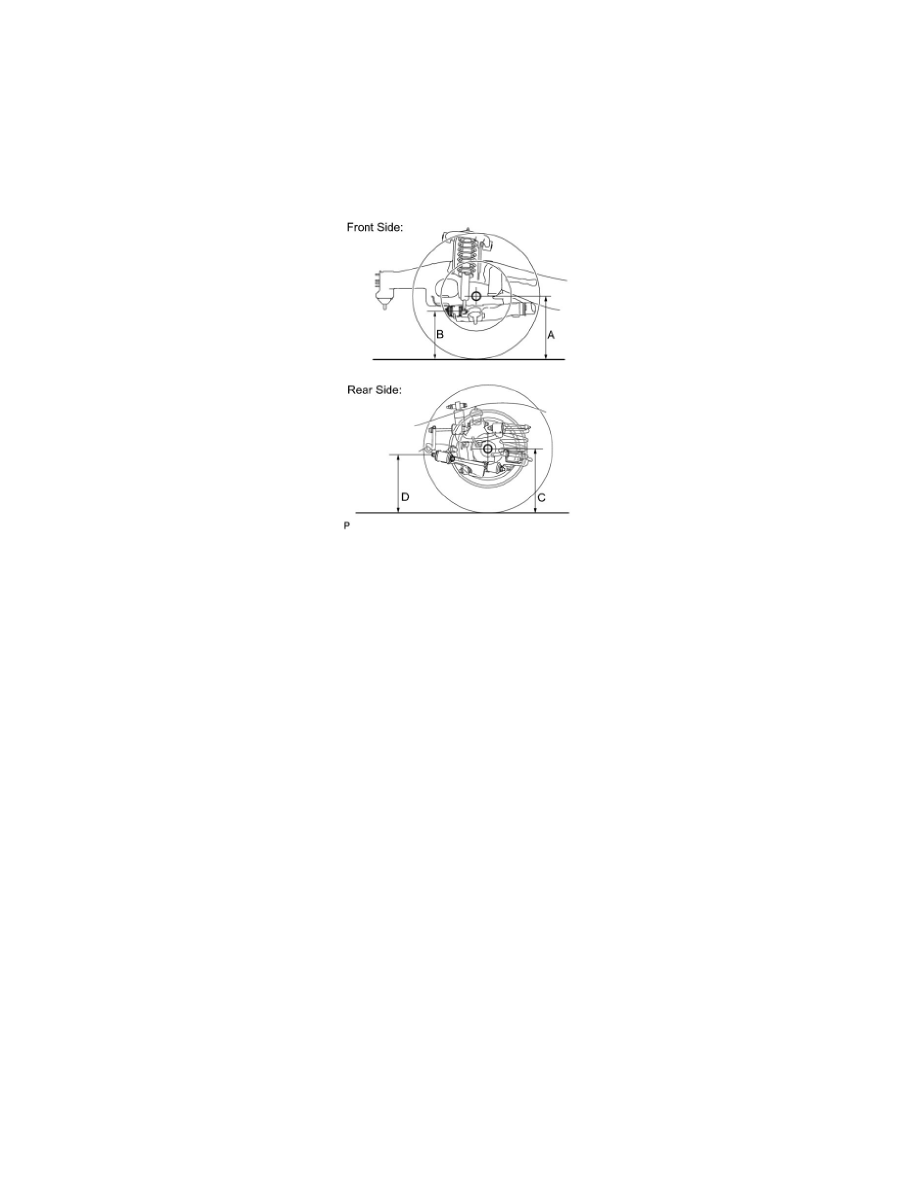

MEASURE VEHICLE HEIGHT

NOTICE:
Before inspecting the wheel alignment, adjust the vehicle height to the specification.

(a) Press down on the vehicle several times to stabilize the suspension, and then measure the vehicle height.

Standard Vehicle Height (Unloaded Vehicle):
