Timing Belt: Diagrams (page 3 of 18)
- Make
- Toyota
- Model
- Sequoia 2WD
- Engine
- V8-4.7L (2UZ-FE)
- Year
- 2003
- Section
- Timing Belt
MaintenanceDiagrams · page 3 of 18

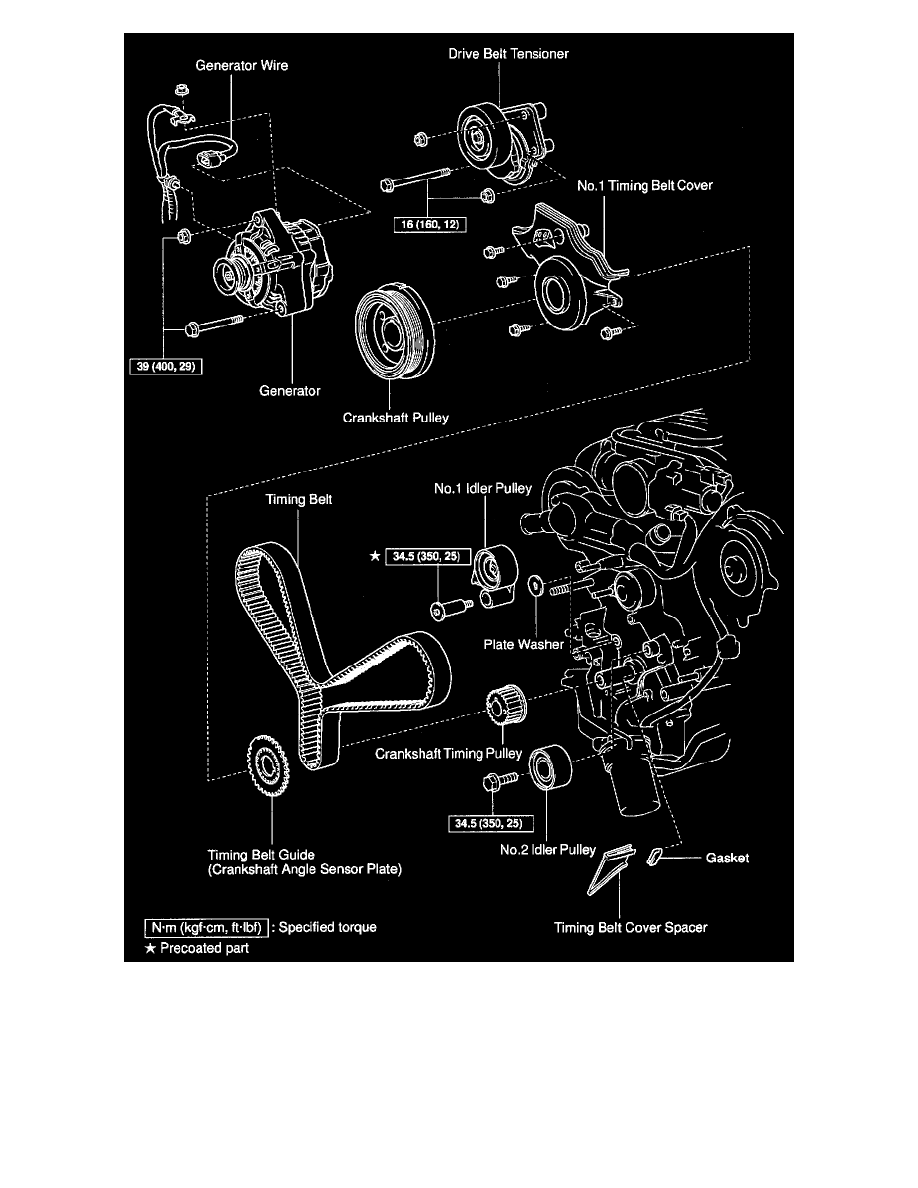

Timing Belt: Diagrams (page 3 of 18) – diagram from the Maintenance chapter of the Toyota Sequoia 2WD V8-4.7L (2UZ-FE) (2003) factory manual.
/Page-310003.png)
Part 4 Of 4
TIMING BELT
