Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-441001.png)
Oil Pressure Gauge: Testing and Inspection
Oil Pressure Receiver Gauge Malfunction
DESCRIPTION
The oil pressure sender detects the oil pressure generated by engine start.
The combination meter determines that the engine is on when the engine revolution is 400 rpm or more, and determines that the engine is off when the
engine revolution is 200 rpm or less.
The oil pressure receiver gauge detects and indicates the oil pressure applied to the oil pressure sender.

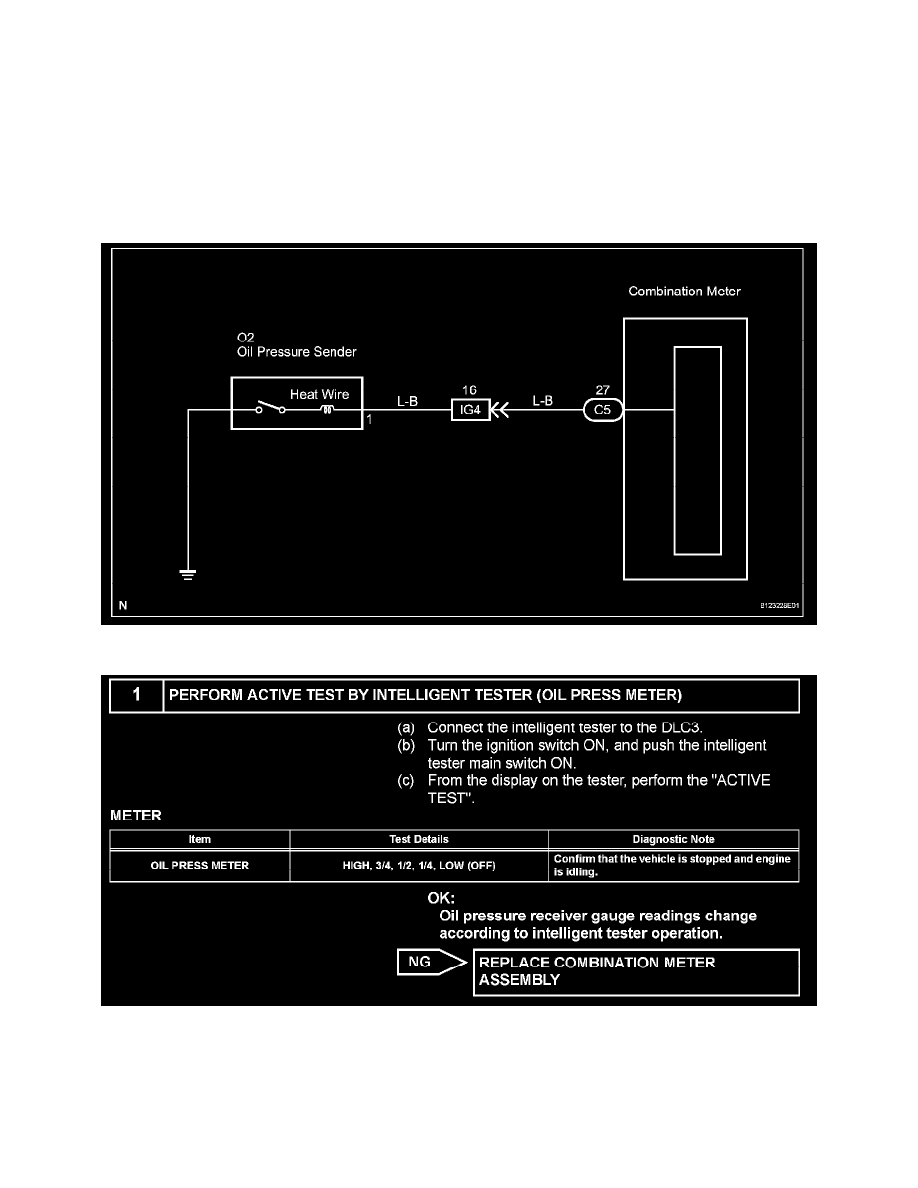

Wiring Diagram
Step 1
