Alignment: Specifications
Service Data
SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA
SERVICE DATA

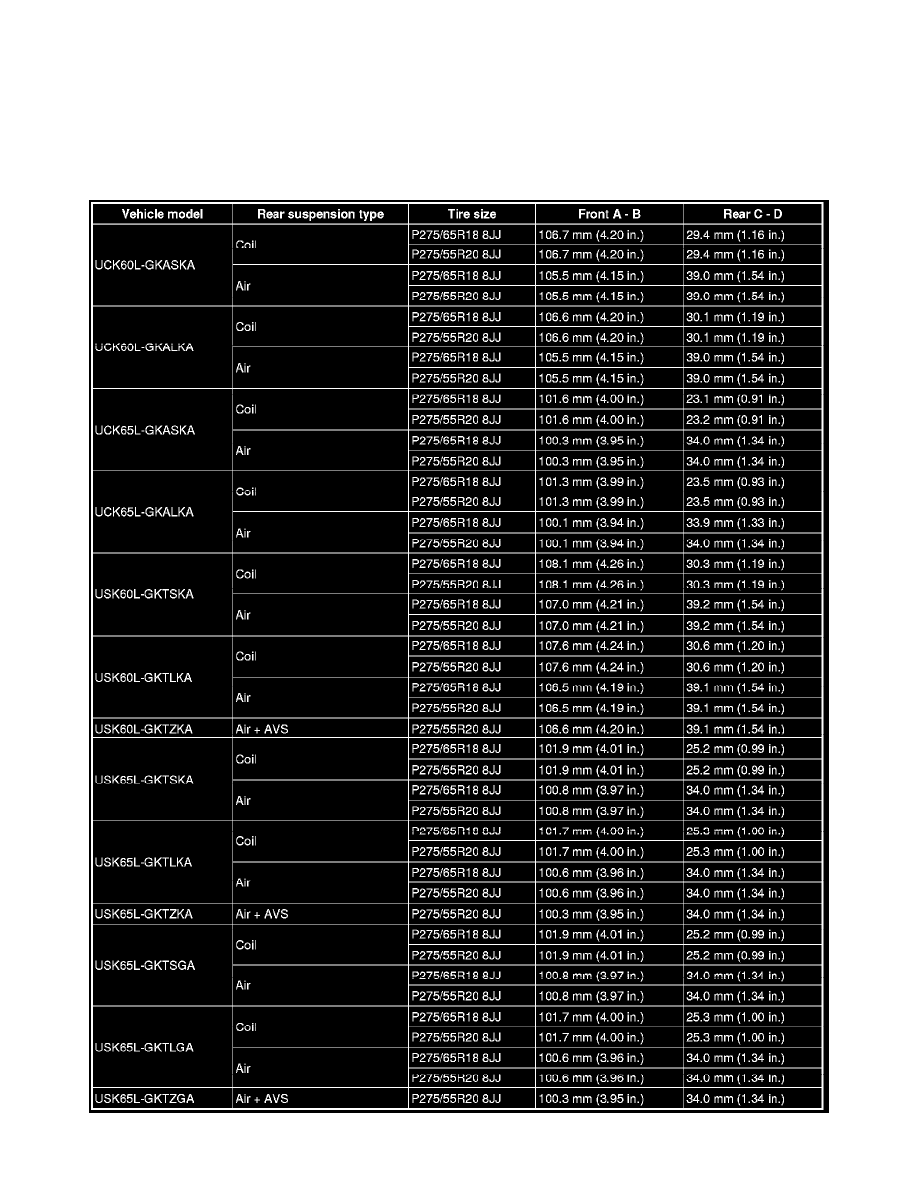

Standard vehicle height (unloaded vehicle):
Standard wheel angle (unloaded vehicle):
