Steering Gear: Diagrams
- Make
- Toyota
- Model
- Sienna
- Engine
- V6-3.0L (1MZ-FE)
- Year
- 2003
- Section
- Steering › Steering Gear › Diagrams
Steering and SuspensionDiagrams · page 1 of 3

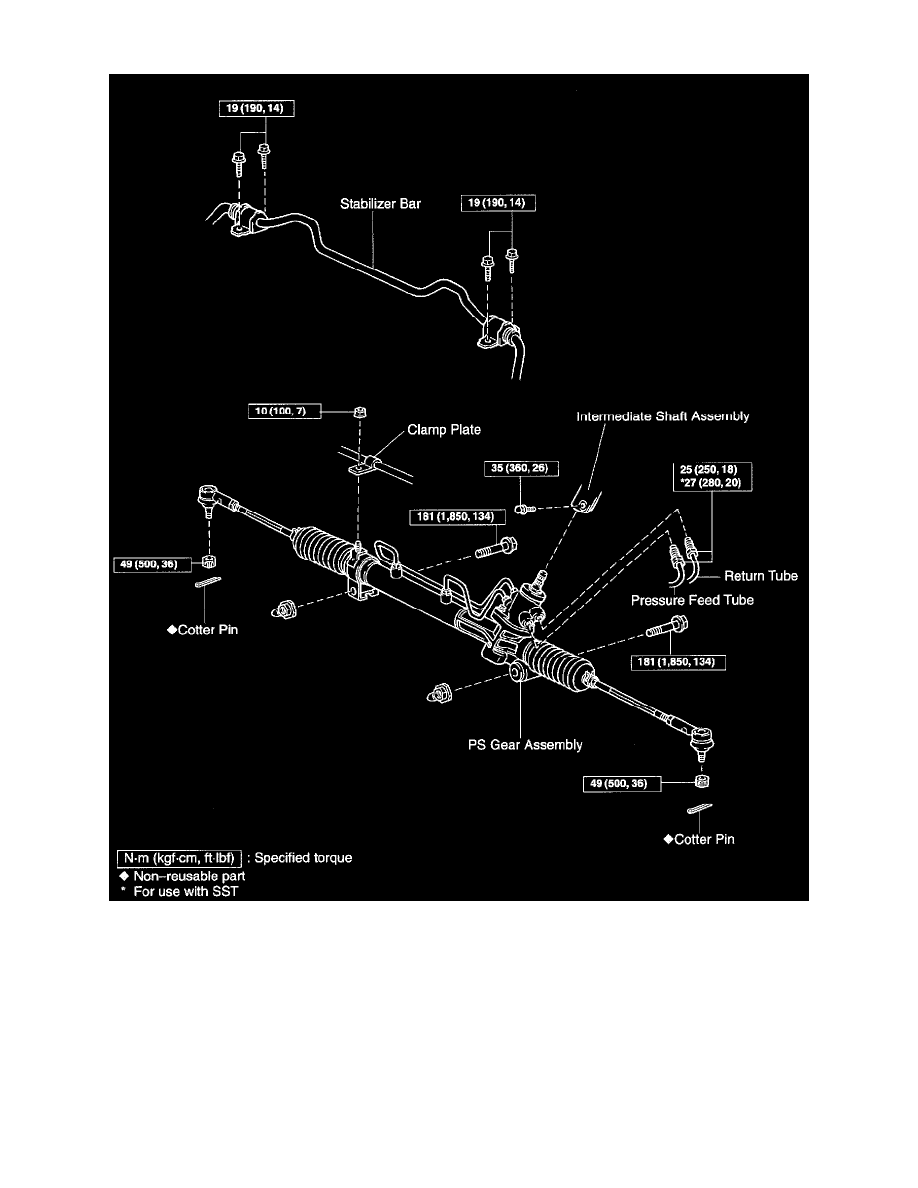

Steering Gear: Diagrams – diagram from the Steering and Suspension chapter of the Toyota Sienna V6-3.0L (1MZ-FE) (2003) factory manual.
/Page-1066001.png)
Steering Gear: Diagrams
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
