Axle Beam: Diagrams
- Make
- Toyota
- Model
- Sienna
- Engine
- V6-3.0L (1MZ-FE)
- Year
- 2003
- Section
- Suspension › Axle Beam › Diagrams
Steering and SuspensionDiagrams · page 1 of 5

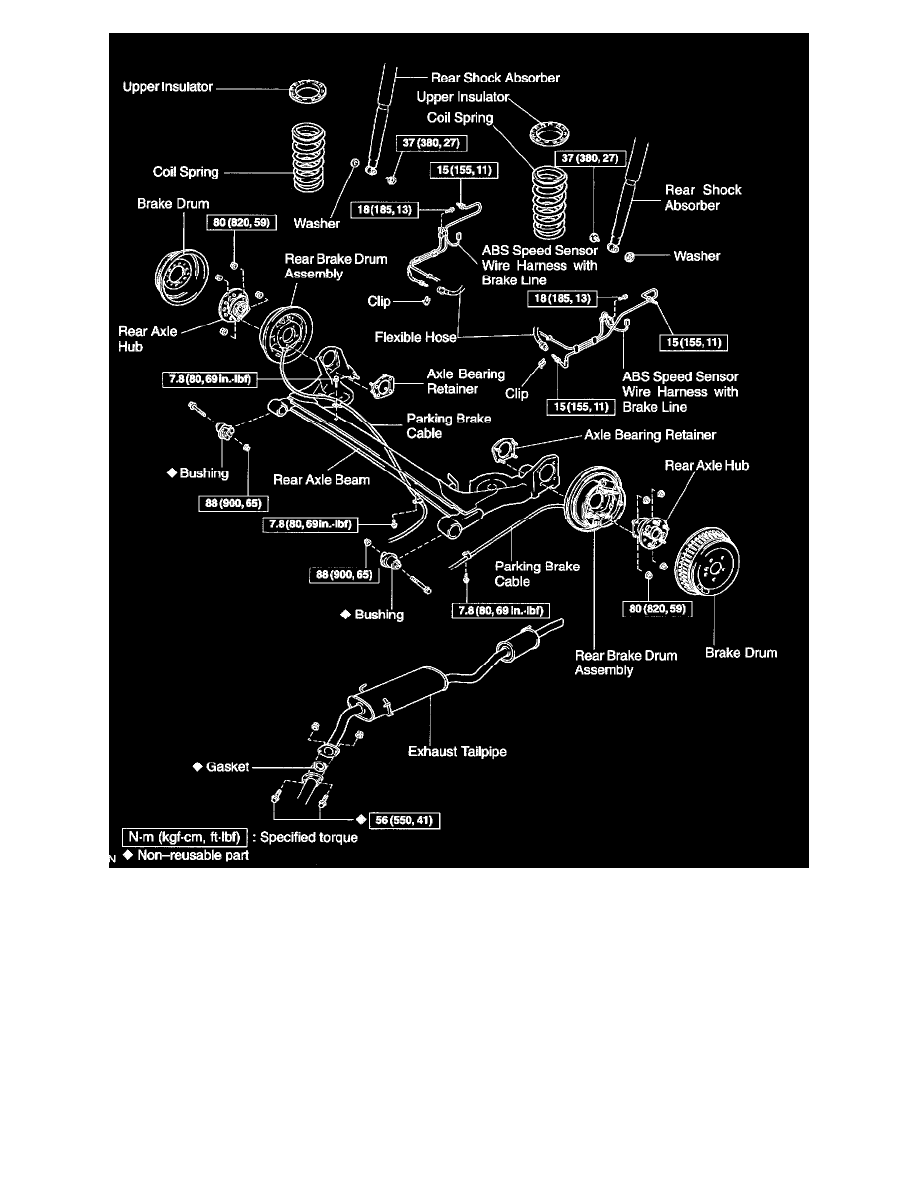

Axle Beam: Diagrams – diagram from the Steering and Suspension chapter of the Toyota Sienna V6-3.0L (1MZ-FE) (2003) factory manual.
/Page-1071001.png)
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
