Timing Belt: Specifications (page 8 of 12)

Make

Toyota

Model

Supra

Engine

L6-3.0L DOHC (7M-GE)

Year

1990

Section

Timing Belt

MaintenanceSpecifications · page 8 of 12

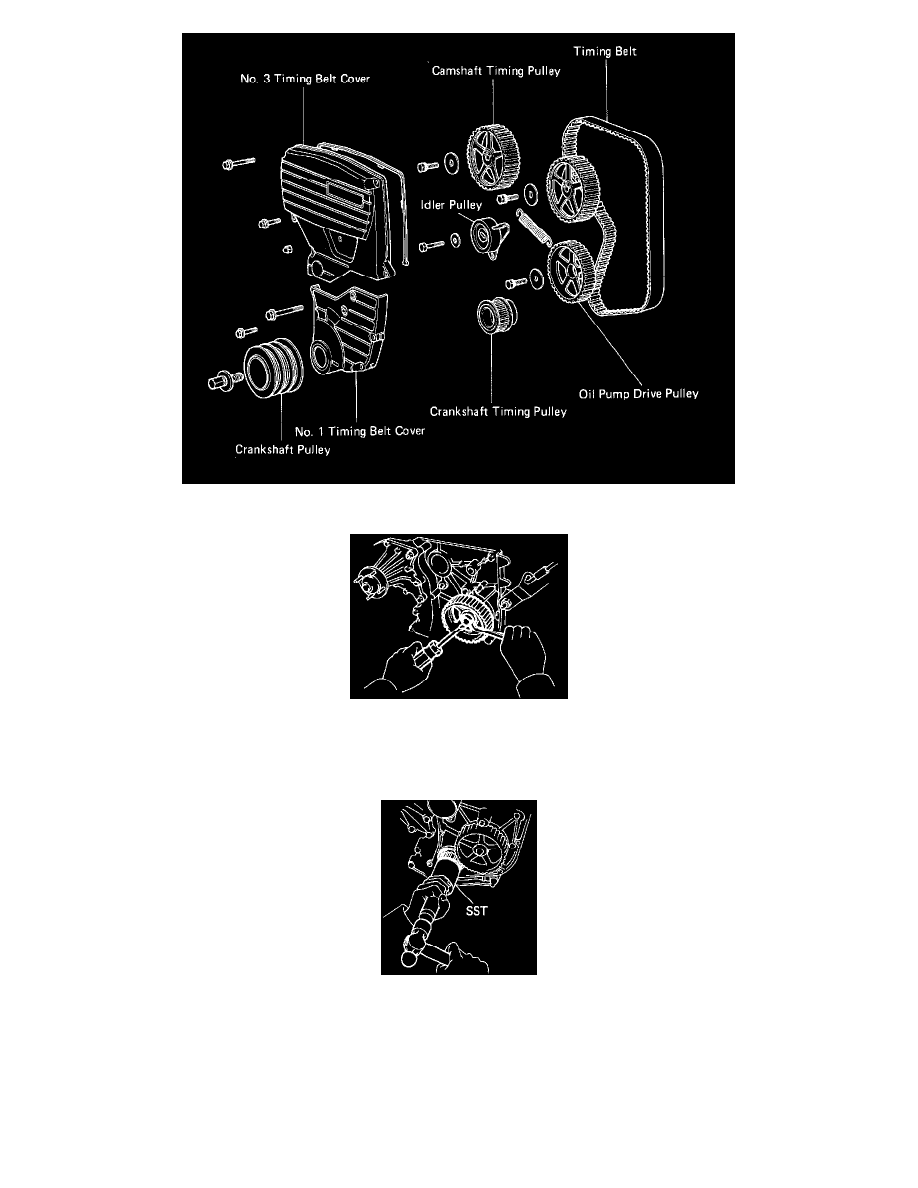

INSTALLATION OF TIMING BELT

1. IN STALL OIL PUMP DRIVE PULLEY

(a) Install the pulley and bolt.
(b) Using a screwdriver to hold the pulley, torque the pulley bolt.

Torque:  220 kg-cm (16 ft-lb, 22 N.m)

2. INSTALL CRANKSHAFT TIMING PULLEY

Using SST and hammer, drive in the pulley. SST 09214-60010
