T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)
Brakes and Traction Control
Antilock Brakes / Traction Control Systems
Electronic Brake Control Module / Component Information
Testing and Inspection / Standard Values of ECU Terminals
Page 3504
Page 21

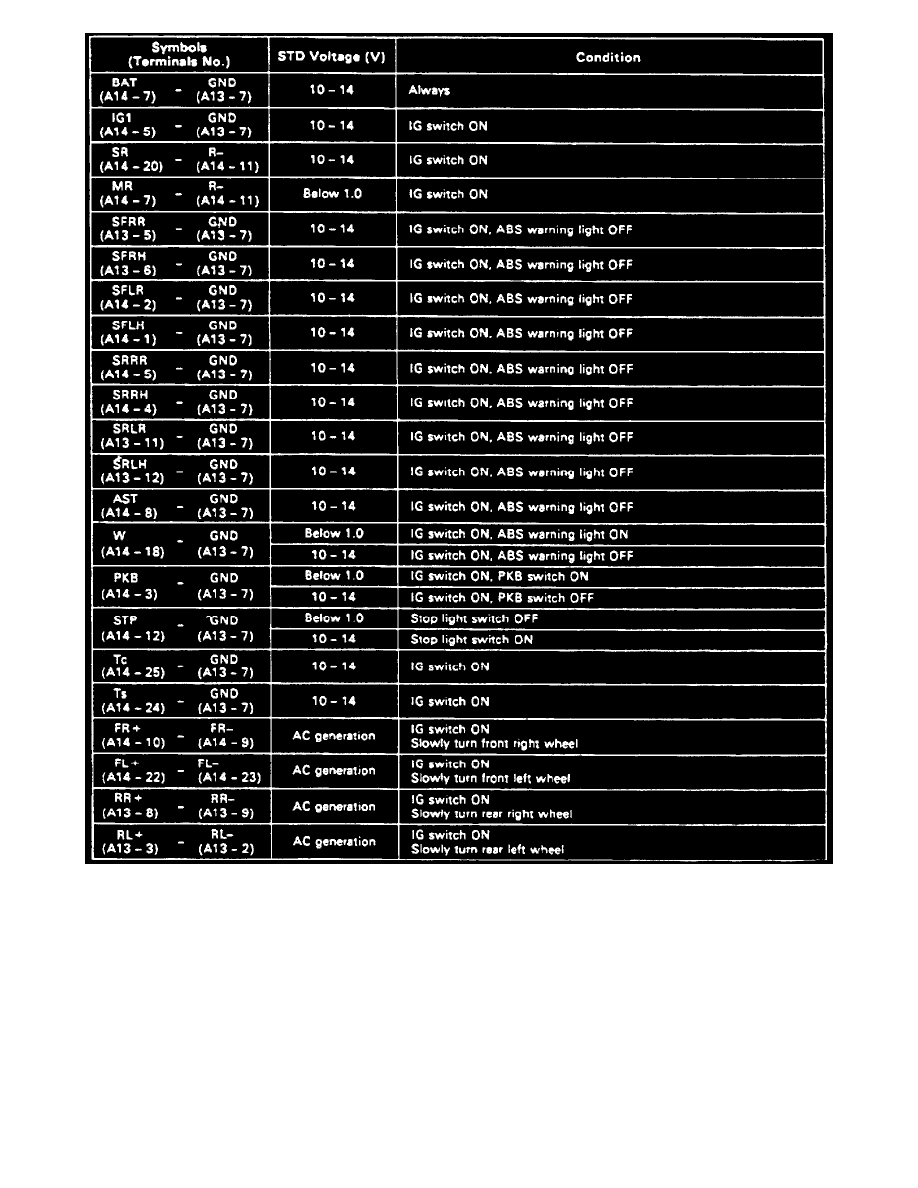

Fig. 193 Anti-lock Brake System Circuit Test (Part 2 Of 2).
Brakes and Traction Control
Antilock Brakes / Traction Control Systems
Electronic Brake Control Module / Component Information
Testing and Inspection / Standard Values of ECU Terminals
Page 3504
