Standard Values of ECU Terminals|Page 3506 > < Standard Values of ECU Terminals|Page 3504

T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)

Page 22
background image

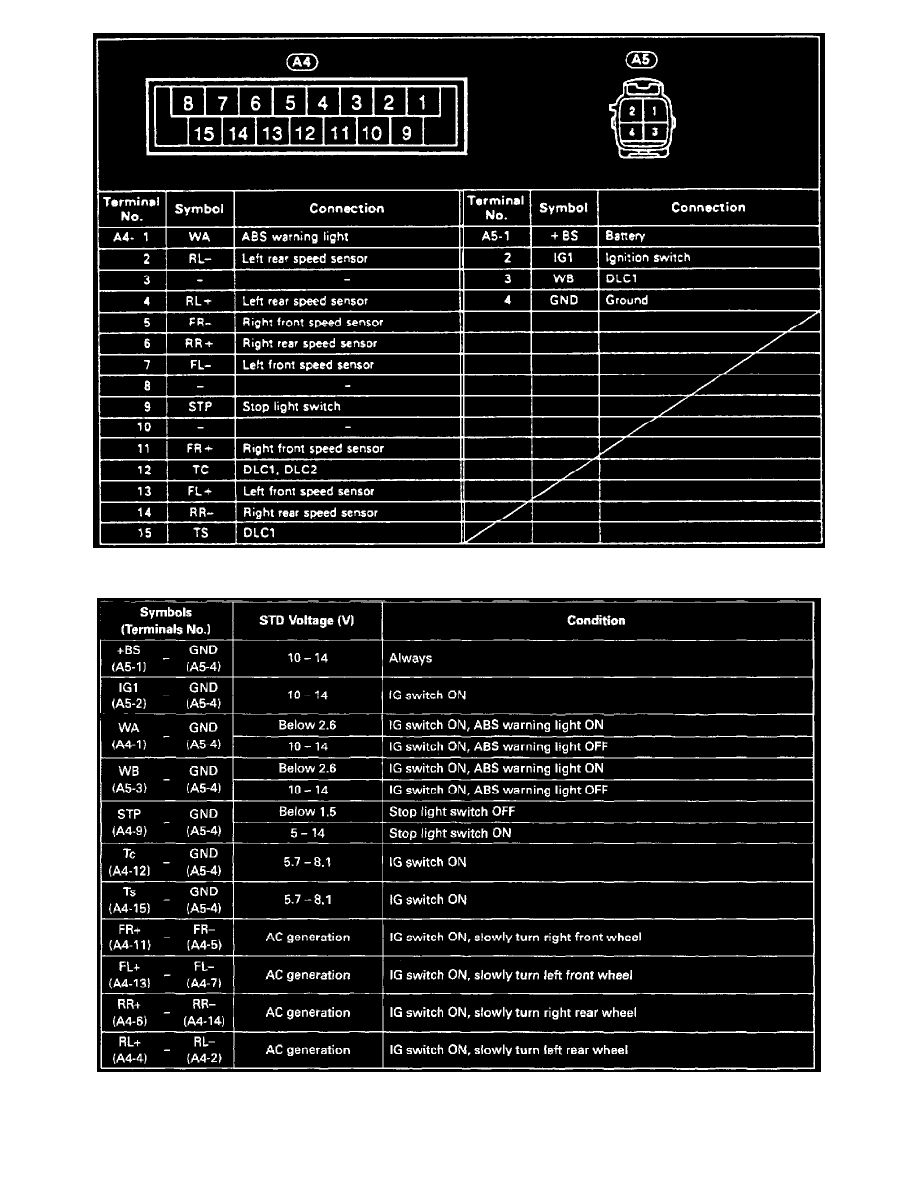

Fig. 194 Bosch Anti-Lock Brake System Circuit Test (Part 1 Of 4).

Fig. 194 Bosch Anti-Lock Brake System Circuit Test (Part 2 Of 4).

Standard Values of ECU Terminals|Page 3506 > < Standard Values of ECU Terminals|Page 3504
