Alignment (Service Data): Specifications

Make

Toyota

Model

Venza AWD

Engine

L4-2.7L (1AR-FE)

Year

2009

Section

Alignment › Specifications › Service Data

MaintenanceService Data · page 1 of 3

Alignment: Specifications
Service Data

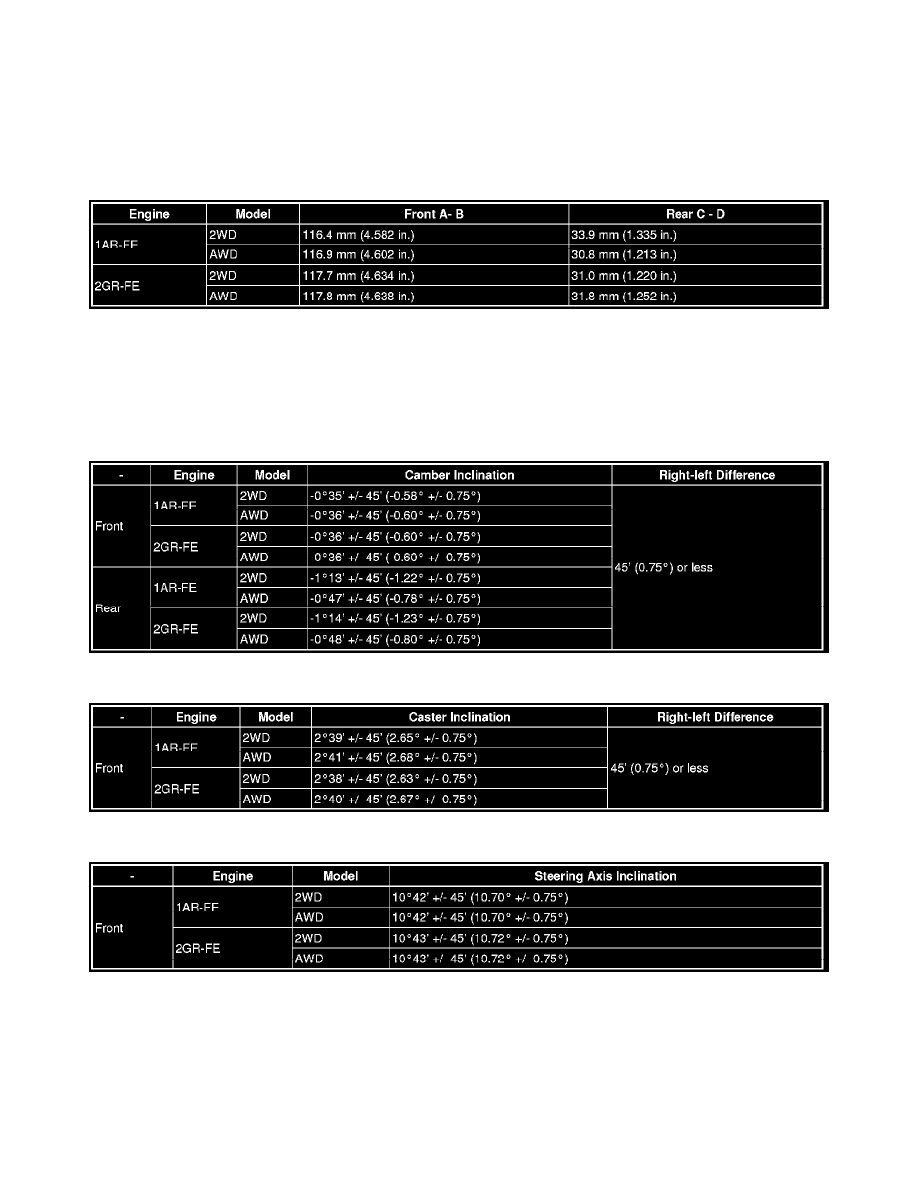

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

SERVICE DATA

Vehicle Height (Unloaded Vehicle)

Measurement points:

-

A: Ground clearance of front wheel center

-

B: Ground clearance of No. 2 lower suspension arm bushing set bolt center

-

C: Ground clearance of rear wheel center

-

D: Ground clearance of strut rod set bolt center

Camber (Unloaded Vehicle)

Caster (Unloaded Vehicle)

Steering Axis Inclination (Unloaded Vehicle)

Toe-in
